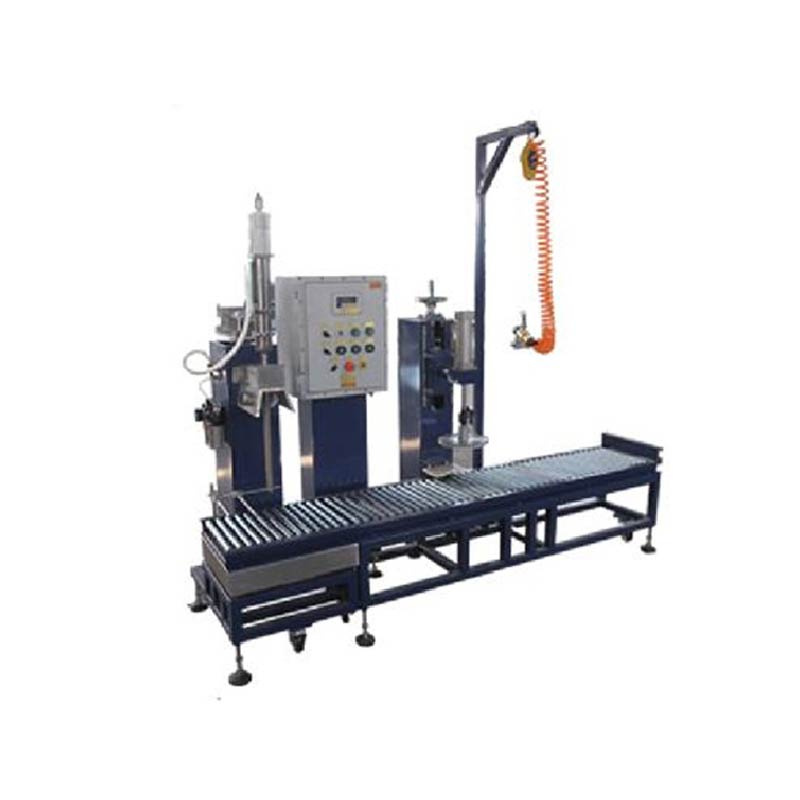

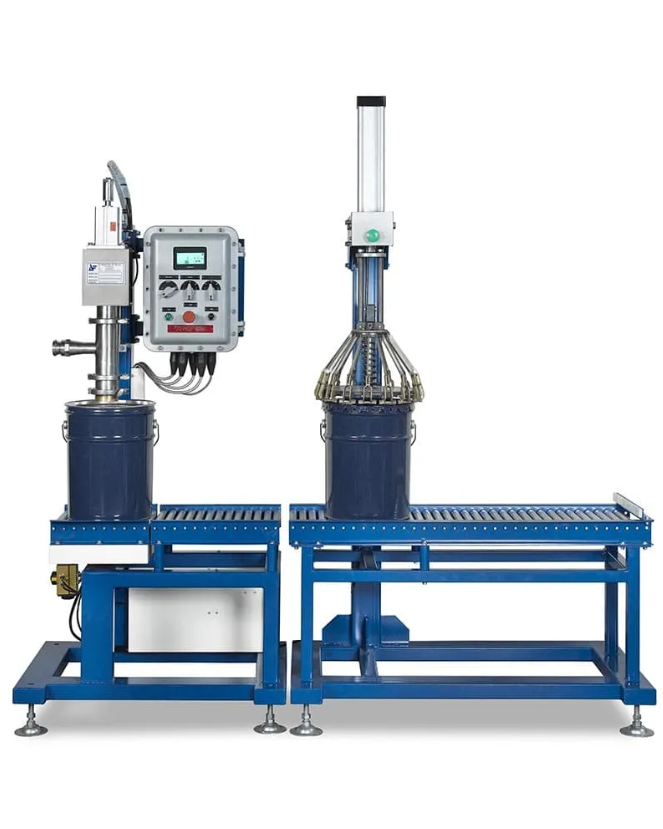

SEMI AUTO METAL PAIL FILLING MACHINE
Guangzhi’s Semi-Auto Metal Pail Filler: Fill 5-60L pails at 20 pails/hour with ±0.3% accuracy. Drip-free, ATEX/CE certified. 70% labor reduction.
- Brand： glzon
- Model： GZM_30L
Product Introduction: GZ-MPF Series Semi-Auto Metal Pail Filling Machine
Precision Filling with Industrial Durability for 5–60L Pails
Shanghai Guangzhi Automation’s GZ-MPF Series delivers high-accuracy (±0.3%) filling of metal pails with hazardous solvents, lubricants, or food-grade liquids at 20 pails/hour. Combining robust carbon steel construction, drip-free nozzle technology, and intuitive PLC controls, this semi-automatic system reduces spillage by 99% and labor costs by 70% while ensuring operator safety in demanding industrial environments.
Core Technologies & Features
Drip-Free Filling System
Retractable 316L stainless steel nozzles with vacuum suction (residual loss <0.05%)
Auto-shutoff valves triggered by load cells (±0.3% gravimetric accuracy)
Operator-Safe Design
Foot pedal control for hands-free operation
Grounding clamps (<10⁶ Ω) for static discharge during solvent filling
Heavy-Duty Construction
金彩汇4mm powder-coated carbon steel frame (1,000 kg capacity)
Abrasion-resistant components for corrosive materials
Versatile Material Handling
金彩汇Handles viscosities from 1–50,000 cP (liquids/pastes)
金彩汇Quick-change nozzles for pail sizes: Ø250–450mm
Smart Control Hub
7" touchscreen HMI with recipe storage (30+ presets)
金彩汇Production reporting: fill volume, batch counts, error logs
Technical Specifications
| Parameter | Specification | Options |
|---|---|---|
| Pail Capacity | 5–60L (standard) | 1–100L |
| Throughput | 20 pails/hour | 30 pails/hour (low-viscosity) |
| Accuracy | ±0.3% (gravimetric) | ±0.2% (premium sensors) |
| Nozzle Types | Standard, Teflon-coated, ATEX-compliant | |
| Filling Speed | 5–60 L/min (VFD-controlled) | |
| Power Supply | 220V/50Hz, 1.5 kW + 0.6 MPa air | 380V/50Hz |
| Pail Compatibility | Steel, tinplate, UN-certified containers | |
| Machine Dimensions | 1,600 × 1,200 × 2,200 mm | |
| Compliance | CE, ATEX Zone 2, OIML R61 | FDA, GMP (food/pharma) |
Workflow Process
Pail Placement: Operator positions empty pail on weigh platform
Nozzle Lowering: Foot pedal activates pneumatic nozzle descent
Precise Filling: PLC-controlled flow with two-stage (fast/slow) dosing
Drip Recovery: Nozzle retracts with vacuum suction
Sealing Ready金彩汇: Filled pail conveyed to capping station
Industry Applications
| Industry | Materials Filled | Critical Features |
|---|---|---|
| Industrial Chemicals | Solvents, acids, resins | ATEX motors, static grounding |
| Lubricants/Greases | Engine oils, gear oils | Heated nozzles (for high-visc) |
| Food Processing | Syrups, edible oils | Sanitary 316SS contact parts |
| Paints/Coatings | Enamels, primers | Solvent-resistant seals |
Operational Advantages
| Feature | Impact |
|---|---|
| Labor Efficiency | 1 operator fills 120+ pails per shift |
| Zero Spillage | Saves $18,000/year in product loss |
| Quick Changeover | Swap nozzle/pail size in <3 mins |
| Durability | 10,000+ hour MTBF in corrosive environments |
| ROI Period | 5–9 months (vs. manual filling) |
Safety & Customization
Standard Protection:
Emergency stop + splash guard
金彩汇|Overfill auto-shutoffUpgrade Modules:
ATEX Package: Explosion-proof for Zone 1/21
Nitrogen Blanketing: O₂ <0.5% for oxidizable liquids
CIP System金彩汇: Clean-in-place for food/pharma
Automation Options:
Conveyor integration
金彩汇|Robotic pail handling
APPLICABLE BARREL TYPE
