金彩汇Shanghai Guangzhi’s PLC-controlled drum filler achieves ±0.1% accuracy for 200L industrial drums. ATEX/FDA compliant, with vapor recovery & auto batching. 15 drums/hour.

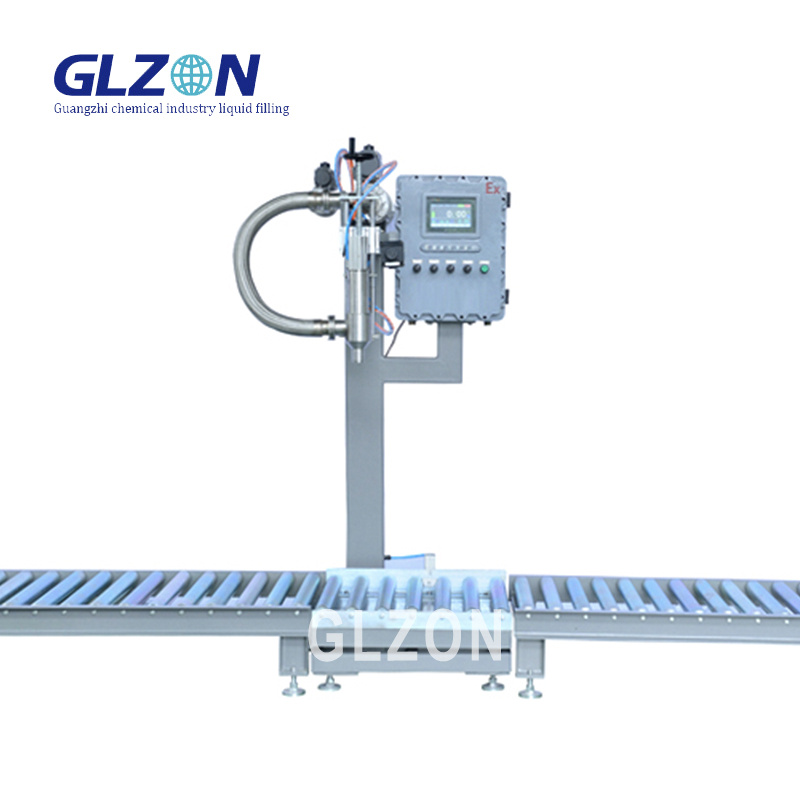

Shanghai Guangzhi Automation’s PLC-Integrated 200L Drum Filler redefines large-volume liquid handling – delivering ±0.1% filling accuracy for chemicals, lubricants, and food-grade oils. Combining Siemens/Rockwell PLC control, ATEX Zone 1 certification, and closed-loop vapor recovery, it achieves 15 drums/hour with zero spillage while synchronizing with ERP/MES systems for Industry 4.0 compliance.
1. Military-Grade Precision
Coriolis Mass Flow Meters金彩汇: ±0.1% gravimetric accuracy (OIML R117 Class 0.5)
Auto Viscosity Compensation: Real-time adjustment for 1-100,000 cP fluids
Thermal Drift Control金彩汇: ±0.01% accuracy across -20°C to 80°C
2. Hazardous Environment Safety
ATEX Zone 1 Certified:
Ex d IIC T4 pressurized panels
Intrinsically safe sensors (Ex ia)
Zero Emission System:
金彩汇Dual-seal vapor recovery (99.97% capture)
金彩汇Nitrogen inerting (O₂ <0.3%)
3. Industry 4.0 Integration
Siemens S7-1500 PLC:
OPC UA/Modbus TCP connectivity
金彩汇Batch recipe management (500+ formulas)
IIoT Ecosystem:
Predictive maintenance alerts
Energy consumption analytics
金彩汇Blockchain batch tracing
| Parameter | Chemical Model | Food Grade Model |
|---|---|---|
| Filling Range | 100-200L (±0.1%) | 100-200L (±0.15%) |
| Filling Speed | 120-180 L/min | 100-150 L/min |
| Viscosity Range | 1-100,000 cP | 1-50,000 cP |
| Drum Compatibility | Steel/PE/HDEP (580-610mm Ø) | Stainless steel only |
| Power Supply | 380V/50Hz, 8.5kW | 380V/50Hz, 7.2kW |
| Vapor Recovery | ≥99.97% | ≥99.95% |
| Data Integrity | 21 CFR Part 11 | ISO 22000 |
| Footprint (L×W×H) | 3500×2200×2500mm | 3500×2200×2500mm |
Chemical & Petrochemical
Corrosion Defense:
PTFE-lined hoses (HCl/H₂SO₄ resistance)
金彩汇Hastelloy C276 flow sensors
Static Control: Conductive fill heads (<10⁵ Ω)
Lubricants & Oils
Foam Suppression金彩汇: Low-pressure filling nozzles
API Compliance: Custody transfer reporting
Food & Edible Oils
3-A Sanitary Design: EHEDG-certified surfaces
CIP/SIP System金彩汇: <10 min cleaning cycle
15" Rugged HMI Touchscreen
Real-time dashboards:
金彩汇Fill accuracy analytics
Vapor recovery efficiency
OEE performance
Multi-language interface (EN/ES/FR/DE)
Cybersecurity & Compliance
金彩汇IEC 62443-3-3 network security
金彩汇Audit trail with electronic signatures
SIL2 safety interlocks
ExxonMobil Supplier Case (Singapore)
Challenge: ±1.5% variance in 200L lubricant drums
Solution: PLC-integrated Coriolis fillers + auto-densimetry
Results:
▶ ±0.08% accuracy
▶ $280K/year savings in giveaway reduction
▶ ROI in 8 months
Certifications:
ATEX 2014/34/EU (Zone 1)
FDA 21 CFR 177.2600
ISO 80079-36 (Explosive atmospheres)
Smart Upgrades:
| Module | Function |
|---|---|
| Robotic Drum Handling | Auto lid placement/sealing |
| Inline Viscosity Probe | Real-time adjustment (±2 cP) |
| AR Maintenance Guide | HoloLens-assisted repairs |
| Carbon Footprint Tracker | ISO 14064 compliance reporting |
24/7 Global Response:
金彩汇Remote diagnostics via VPN-secured IIoT
Critical Spares Dispatch:
Coriolis meters
金彩汇Vapor recovery membranes
ATEX-certified valves
Global delivery ≤72h from Shanghai/Rotterdam/Houston hubs
APPLICABLE BARREL TYPE
