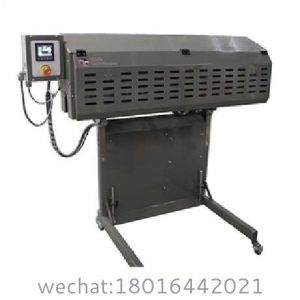

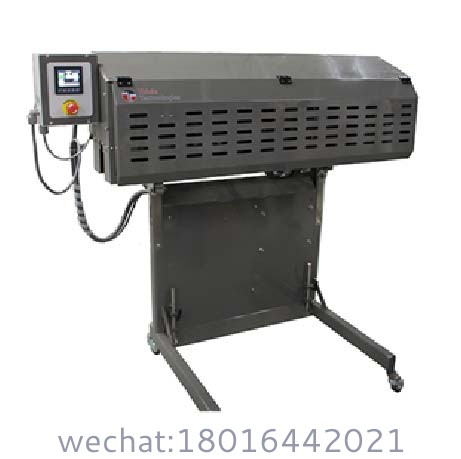

Model Pinch Bottom Bag Closer

Product Essence: Uncompromised Sack Integrity

Shanghai Guangzhi Automation’s Model Pinch Bottom Bag Closer delivers industrial-strength sealing for 50-100lb (25-50kg) pinch bottom sacks (PP woven, paper, jute). Engineered for cement, animal feed, and chemical powders, this rugged closer achieves 80 bags/hour with triple-thread lock stitching, eliminating spillage while withstanding harsh plant environments.

Core Technology Advantages

1. Heavy-Duty Stitching Precision

• Triple-Lock Stitch: Class 300 thread (≥35 lb tensile strength)

• Auto Tension Control: Maintains consistent stitch density across materials

• Needle Guard System金彩汇: Prevents breakage on thick seams (up to 8mm)

2. Dust Containment & Safety

• IP65 Enclosure: Sealed motors/bearings resist abrasive dust ingress

• ATEX Zone 21 Option: Explosion-proof servo drives (Ex IIB T4)

• Vacuum Extraction Port: Captures 95% airborne particulates

3. Material Versatility

4. Ergonomic Operation

• Height-Adjustable Conveyor (800-1200mm)

• Foot Pedal Control (freeing operator’s hands)

• Quick-Release Thread Guides (<30s reload)

Critical Specifications

Stitch Type: Lockstitch (Type 304 SS thread)
Max Bag Width: 600mm
Stitch Length: 5-15mm (adjustable)
Thread Capacity: 5,000m spools
Power: 380V/50Hz, 1.5kW (ATEX: 24VDC)
Dust Emission: ≤3mg/m³ (ISO 14644)
Footprint: 1500×800×1400mm (L×W×H)

Industry-Specific Solutions

Cement & Building Materials

• 金彩汇Tungsten-coated needles for abrasive cement dust

• 金彩汇Anti-static kit (surface resistance <10⁹ Ω)

Food & Feed

• USDA/FDA-compliant food-grade oils

• 金彩汇Washdown-ready SS304 construction

Chemicals

• 金彩汇Corrosion-resistant components (Hastelloy C-22)

• 金彩汇Nitrogen purge option for combustible dusts

Case Study: US Animal Feed Producer

Challenge:

• 金彩汇50lb paper sacks ruptured at stitch line

• Dust explosions during closing
  Solution:

• ATEX model with reinforced stitching
  Results:
  ▶ Zero sack failures in 500K+ bags
  ▶ Compliance with NFPA 652
  ▶ ROI in 9 months

Global Compliance & Value

Certifications

• CE Machinery Directive

• 金彩汇ATEX 2014/34/EU (Zone 21)

• FDA CFR 21 (food contact)

Cost Advantage

• 50% lower TCO金彩汇 vs EU equivalents

• Modular Upgrades:

• 金彩汇Inkjet batch coding

• Auto bag placer

• Stitch inspection camera

Support Commitment

• 金彩汇24/7 multilingual troubleshooting

• Critical spares global dispatch ≤72h:

• 金彩汇Needle assemblies

• Tension discs

• Dust filters

•
