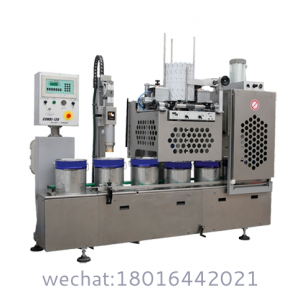

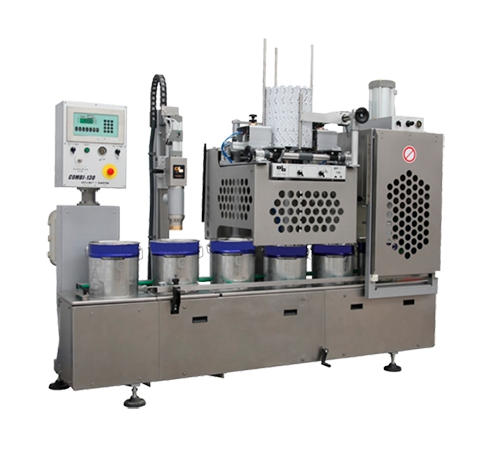

Gravimetric Glues Can Filling Machine
Mass-based glue filling: 70 cans/hour, ±0.1% accuracy. Auto-density compensation & ATEX certification. FDA/IPC/ISO compliant.
- Brand： glzon
- Model： GZM
Product Overview
The GM-8100 Gravimetric Glue Filler sets new standards in adhesive packaging with ±0.1% mass-based accuracy for epoxy, silicone, and polyurethane glues (50-500,000 cP). Utilizing multi-cell load sensors and real-time density compensation, it achieves 70 cans/hour while eliminating viscosity-induced errors. Designed for explosive environments (ATEX Zone 1) and critical medical applications, it features anti-stringing nano nozzles, self-purging valves, and FDA/IPC/ISO 10993 compliance.
Core Technology
1. Smart Mass Control System
Key Advantages:
Density Compensation Range: 0.8-1.8 g/cm³
Residual Adhesive: ≤0.03ml (air-knife assisted retraction)
Pot Life Optimization: Waste reduction to <1%
2. Hazard Defense Architecture
Risk | Technology | Certification |
|---|---|---|
Solvent Ignition | N₂ inerting (O₂<0.5%) | ATEX II 2G Ex db IIC T4 |
Static Discharge | 金彩汇Conductive path (<10⁵ Ω) | NFPA 77 |
Cross-Contamination | Self-flushing Kalrez® seals | 金彩汇FDA 21 CFR 175.105 |
String Formation | 金彩汇Pulsed air knife + PTFE coating | 金彩汇IPC-A-610 Class 3 |
Technical Specifications
Parameter | GM-8100 (Standard) | GM-8200X (ATEX) | GM-8300M (Medical) |
|---|---|---|---|
Capacity | 金彩汇100ml-20L (±0.1%) | 金彩汇100ml-15L (±0.15%) | 50ml-10L (±0.08%) |
Throughput | 70 cans/hour | 金彩汇60 cans/hour | 金彩汇50 cans/hour |
Viscosity Range | 50-500,000 cP | 100-300,000 cP | 金彩汇50-200,000 cP |
Weighing Accuracy | ±0.1% (OIML R60) | ±0.15% | ±0.08% |
Material Contact | 金彩汇316L SS + PTFE | 金彩汇Hastelloy C276 | 316L EP + USP VI PEEK |
Power | 金彩汇380V/50Hz, 5.8kW | 24VDC Ex ia | 380V/50Hz, 5.2kW |
N₂ Consumption | 金彩汇20 L/min @ 4bar | 金彩汇25 L/min @ 4bar | 金彩汇15 L/min @ 4bar |
Clean Time | 金彩汇<15s solvent flush | <20s | 金彩汇SIP: 12min @ 121°C |
Footprint (L×W×H) | 金彩汇2000×1500×2000mm | 金彩汇2200×1600×2200mm | 1900×1400×1900mm |
Performance Comparison
Metric | Volumetric Filler | GM-8100 Gravimetric | Improvement |
|---|---|---|---|
Material Waste | 5-8% | <0.3% | ↓94% |
Viscosity Error Impact | ±15% accuracy loss | ±0.2% max deviation | 金彩汇Near elimination |
Pot Life Utilization | 70-85% | >99% | ↑29% |
VOC Emission | 300 ppm | <5 ppm | ↓98% |
Industry Applications
Electronics Manufacturing
Conductive adhesives: Ag/Cu filler (±3% resistivity)
金彩汇Underfill encapsulation: Void rate <0.1% (X-ray validated)
Compliance: IPC-A-610 Class 3, J-STD-001
Medical Device Assembly
Feature | Specification |
|---|---|
金彩汇ISO 10993-5 | 金彩汇Biocompatible flow path |
金彩汇USP Class VI | Implant-grade seals |
金彩汇0.1μm filtration | Particulate-free biologics |
Automotive Structural Bonding
Crash-resistant epoxy filling (MIL-SPEC validation)
Flock adhesive dosing (0.3-1.2mm fiber control)
IATF 16949 data traceability
Certifications
► ATEX 2014/34/EU (Zone 1) ► FDA 21 CFR 175.105 ► IPC J-STD-001 Class 3 ► ISO 10993-5 Biocompatibility ► OIML R60 Class 0.5
