Twin screw with main and dribble feed screws driven by separate motors with cut-off gate for precise clean cut and minimum free fall. Dust tight design enclosure with inlet flange connection. Its uniq
Precision Bulk Packaging for Granular & Powdered Materials
Shanghai Guangzhi Automation’s GZ-GB Series integrates advanced screw feeding technology with gross-weight bagging automation, delivering ±0.3% filling accuracy at 25 bags/hour for minerals, chemicals, and food-grade powders. Engineered with heavy-duty carbon steel construction and PLC-controlled dosing, this system eliminates manual weighing errors while reducing labor costs by 75% in demanding industrial environments.

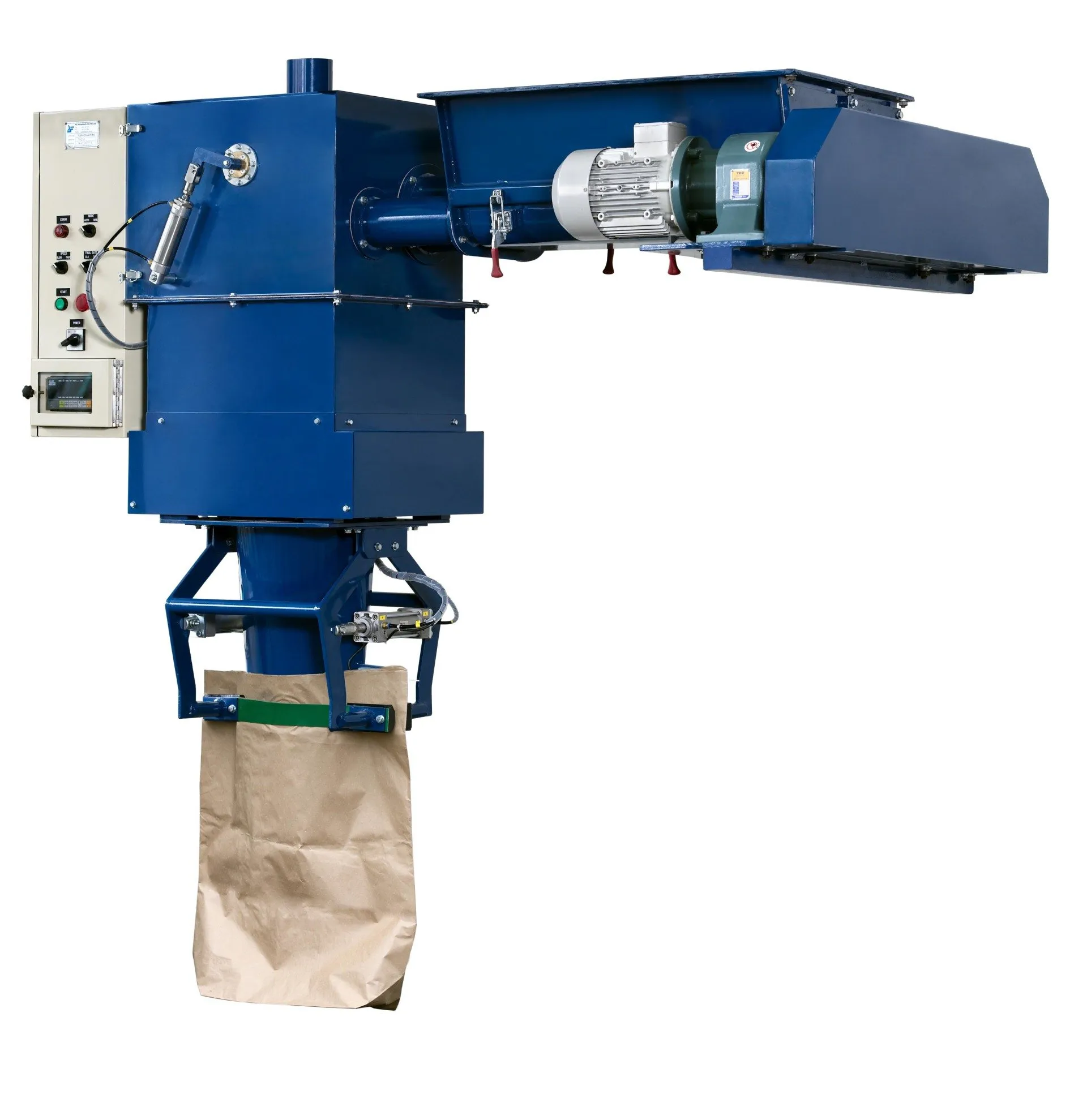

High-Precision Screw Feeder System
Anti-Segregation Design: Variable-pitch screw (Ø150–400mm) maintains product integrity for blends
Speed Control: 5–60 rpm adjustable via VFD (flow range: 0.5–3 T/h)
Gross-Weight Bagging
500kg load cells with ±0.3% accuracy
Automatic tare compensation for bag weight variations
Dust-Tight Operation
金彩汇Pneumatic telescopic spout + dust collection port (ISO 8573-1 Class 2)
IP65-rated control panel for harsh environments
Semi-Auto Bag Handling
金彩汇Bag placers position open-mouth sacks (25–50kg)
金彩汇Foot pedal initiates filling/sealing cycle
Robust Construction
金彩汇5mm carbon steel frame (1,500 kg capacity)
金彩汇Abrasion-resistant screw flights (Hardox 400 coating)
| Parameter | Specification | Options |
|---|---|---|
| Bag Capacity | 25–50 kg (standard) | 10–100 kg |
| Throughput | 25 bags/hour | 40 bags/hour |
| Accuracy | ±0.3% (gross weight) | ±0.2% (premium load cells) |
| Screw Diameter | Ø250 mm | Ø150–400 mm |
| Material Compatibility | Granules (0.5–20mm), Powders (<500μm) | Sticky pastes (add vibrator) |
| Power Supply | 380V/50Hz, 4.5 kW + 0.7 MPa air | 220V/60Hz |
| Bag Types | Woven PP, Paper, Laminated | Valve sacks |
| Machine Dimensions | 2,800 × 1,800 × 3,200 mm | |
| Compliance | CE, ATEX (Zone 22), OIML R61 | FDA/USDA (food grade) |
Minerals & Aggregates:
金彩汇Sand, gravel, cement (dust-proof design)
Chemicals:
金彩汇Granular fertilizers, polymer pellets (anti-static option)
Food Processing:
Sugar, flour, powdered ingredients (sanitary 304SS version)
Animal Feed:
Pelletized feed with additive dosing
Bag Placement: Operator positions empty bag on filling spout
Clamping金彩汇: Pneumatic clamps secure bag mouth (dust-tight seal)
Screw Filling: PLC-controlled screw delivers precise material volume
Weighing: Load cells monitor gross weight in real-time
Release金彩汇: Auto bag drop onto take-away conveyor
| Feature | Impact |
|---|---|
| Labor Efficiency | 1 operator handles 1,250 kg/h output |
| Material Savings | Prevents overfill (saves 3–5% product) |
| Durability | 10,000+ hour MTBF in abrasive environments |
| Quick Changeover | Swap screws in <15 mins (tool-free) |
| ROI Period | 6–10 months (vs. manual bagging) |
Special Screws:
金彩汇Ribbon screws for fragile crystals
金彩汇Paddle screws for cohesive powders
Automation Upgrades:
Robotic bag placers
金彩汇|Automatic palletizing integration
Hazardous Environments:
金彩汇ATEX Zone 21/22 explosion-proofing
Nitrogen purging for oxidizable materials
Hygienic Packages:
CIP-ready with polished surfaces
