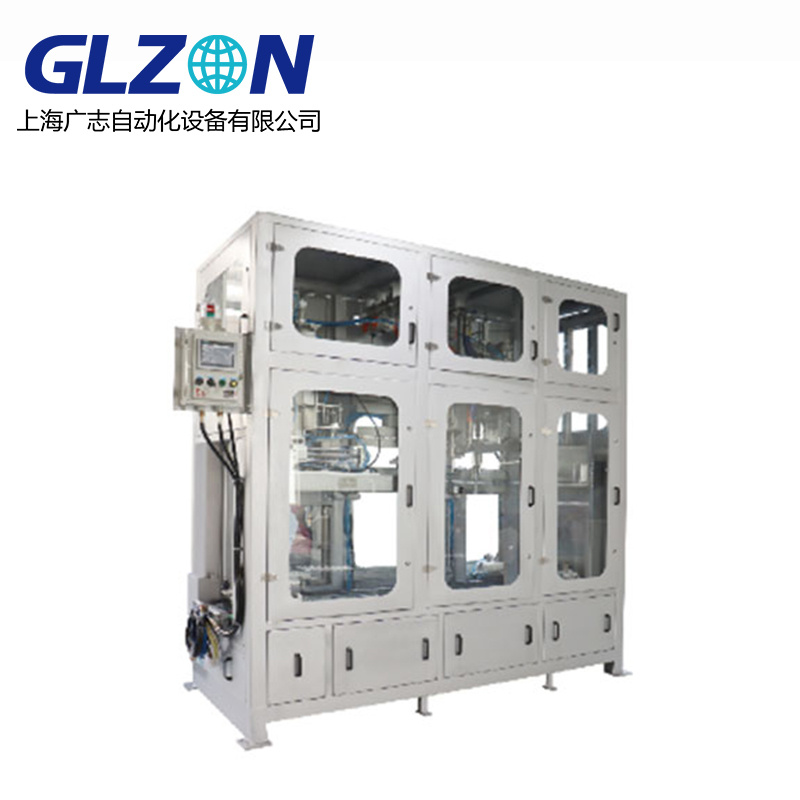

Full Automatic Double Head Liquid Filling Machine for Bottles
Automatic double-head bottle filler: 300 bottles/hour, ±0.3% accuracy. Independent servo heads & CIP/SIP ready. CE/ATEX/FDA certified.
- Brand： glzon
- Model： GZM_200L
DualFill Pro DB-5000 Series
Fully Automatic Double Head Bottle Filling Machine
Twin-Channel Precision. Double the Output.
Technical Specifications
Parameter | DB-5100 (Standard) | DB-5200A (Aseptic) | DB-5300X (ATEX) |
|---|---|---|---|
Bottle Capacity | 100ml-5L | 100ml-5L | 100ml-3L |
Throughput | 300 bottles/hour | 280 bottles/hour | 金彩汇240 bottles/hour |
Filling Heads | 金彩汇2 (Independent Servo) | 金彩汇2 (Sterile Barrier) | 2 (Ex-rated) |
Accuracy | 金彩汇±0.3% volumetric | 金彩汇±0.2% mass flow | ±0.4% |
Viscosity Range | 1-50,000 cP | 1-20,000 cP | 10-40,000 cP |
Material Contact | 316L SS + EPDM | 316L EP + USP VI Silicone | Hastelloy C276 |
Container Types | 金彩汇Glass/PET/Plastic | Same + Pre-sterilized | Same |
Changeover Time | 金彩汇<3 min (Tool-Free) | <8 min (SIP Cycle) | <5 min |
Anti-Drip System | 金彩汇Pneumatic Needle Retract | Steam Sterilizable | 金彩汇Ex-rated Solenoid |
Power | 金彩汇380V/50Hz, 6.8kW | 380V/50Hz, 7.5kW | 金彩汇24VDC Ex ia |
Clean Time | CIP: 6 min | SIP: 15 min @ 121°C | Solvent Wash: 10 min |
Footprint (L×W×H) | 金彩汇2200×1600×2200mm | 金彩汇2500×1800×2400mm | 2400×1700×2300mm |
Core Technology
1. TwinSync™ Filling Control
Key Innovations:
Feature | Benefit |
|---|---|
Independent Calibration | Each head ±0.1% self-adjustment |
Cross-Contamination Barrier | 金彩汇Isolated fluid paths + air purge |
No Bottle No Fill | IR sensors save 15% product |
2. Industry-Specific Engineering
Industry | Solution | Certification |
|---|---|---|
Beverages | CO₂ compensation (±0.1g/L) | FDA 21 CFR 110 |
Pharmaceuticals | Nitrogen blanketing (O₂<0.5%) | ISO 13485 |
Cosmetics | 金彩汇Anti-foam pulsed filling | 金彩汇ISO 22716 GMP |
Chemicals | 金彩汇Vapor recovery hood (>99%) | 金彩汇ATEX Zone 1 |
Performance Comparison
Metric | Single-Head Filler | 金彩汇DB-5100 Dual Head | Improvement |
|---|---|---|---|
Output | 150 bottles/hour | 300 bottles/hour | ↑100% |
Floor Space | 1.8m² | 2.2m² | +22% (2x output) |
Accuracy | ±0.5% | ±0.3% | ↑40% |
Changeover Loss | 10 min downtime | <3 min | ↓70% |
Smart Control Ecosystem
12" Touchscreen HMI with DualVision™
AI Modules:
Predictive Maintenance:
Component
Alert Threshold
Pump Vibration
金彩汇>4.5mm/s → Service
Seal Wear
>5% compression loss
Anomaly Detection:
Issue
Response
Foaming
Pressure reduction
Underfill
金彩汇Auto-reject + recalibrate
Certifications
► CE EN 415-6 ► ATEX 2014/34/EU (DB-5300X) ► FDA 21 CFR 177.2600 ► EHEDG Doc. 8 (Aseptic) ► ISO 9001:2015
Operational Workflow
1. Bottle unscrambling → 2. Dual-lane orientation → 3. N₂ purging (O₂<0.5%) → 4. Synchronous filling → 5. Vision inspection → 6. Capping & coding
Cycle Time: 6 seconds/bottle pair
