Shanghai Guangzhi’s ATEX IBC Filler achieves ±0.1% accuracy for 100-1000L lubricants/chemicals. Zone 1 certified, vapor recovery & SIL3 safety. 15 totes/hour.

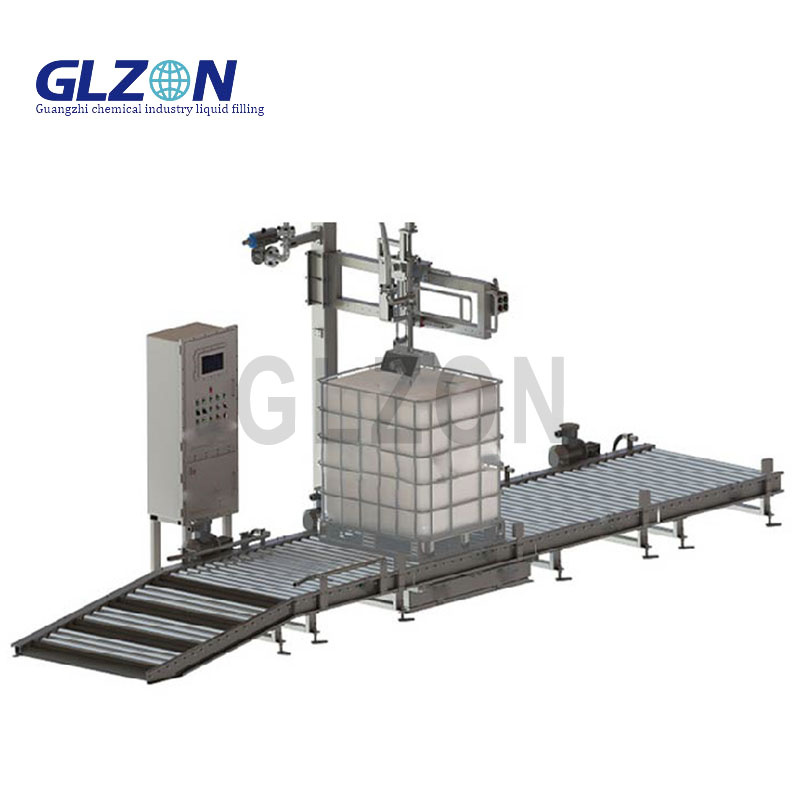

Shanghai Guangzhi Automation’s ATEX-Certified IBC Filler redefines safety for Zone 1/21 hazardous environments – filling lubricants, solvents, and aggressive chemicals into 100-1000L IBC totes with ±0.1% accuracy. Engineered with pressurized Ex d enclosures, triple-redundant safety interlocks, and closed-loop vapor recovery, it delivers 15 totes/hour while eliminating ignition risks and VOC emissions.
1. ATEX Zone 1/21 Certified
Ex d IIC T4 Pressurized Panels: Prevents flammable vapor ingress
Intrinsic Safety (Ex ia): Fiber-optic sensors & 24VDC circuits
Static Dissipation: Conductive fill paths (<10⁵ Ω) + auto-grounding
2. Military-Grade Precision
Coriolis Mass Flow Meters金彩汇: ±0.1% gravimetric accuracy (OIML R117 Class 0.3)
Viscosity Compensation: Real-time adjustment for 1-500,000 cP
Thermal Stabilization: ±0.02% accuracy across -30°C to 80°C
3. Zero-Emission System
Dual-Stage Vapor Control:
Primary: Nitrogen inerting (O₂ <0.5%)
金彩汇Secondary: Carbon adsorption (≥99.97% capture)
Spill-Containment:
Secondary drip tray (200L capacity)
金彩汇Laser-guided flange alignment (±0.5mm)
| Parameter | Specification |
|---|---|
| Filling Range | 100–1000L (±0.1%) |
| Flow Rate | 150–300 L/min |
| Tote Compatibility | Standard IBC (1200×1000×1160mm) |
| Viscosity Range | 1–500,000 cP |
| Materials | Hastelloy C276 / PTFE / PEEK |
| Power Supply | 380V/50Hz, 15kW (Ex d certified) |
| Safety Integrity | SIL3 (IEC 61511) |
| Vapor Recovery | ≥99.97% (EPA Method 21) |
| Footprint (L×W×H) | 4200×2800×3500mm |
| Chemical | Specialized Feature |
|---|---|
| Lubricants (ISO VG 320-680) | Heated jackets (60°C) + anti-foam pulsation |
| Acetone/Toluene | Explosion-proof peristaltic pumps |
| 37% HCl | Electro-polished Hastelloy C22 flow path |
| Peroxide Solutions | Static-dissipative fill probes |
Triple-Redundant Protection
Gas Detection:
金彩汇IR sensors for LEL monitoring (≥10% alarm)
金彩汇Auto nitrogen purge activation
Mechanical Safeguards:
Shear pins on overpressure (≤0.3 bar)
Flame arrestors on vents
Data Forensics:
金彩汇10-year encrypted audit trail
金彩汇Blockchain incident logging
15" ATEX HMI (Ex de IIC T6)
Real-time dashboards:
Fill accuracy analytics
Vapor recovery efficiency
金彩汇O₂ concentration
金彩汇Recipe management (200+ chemicals)
Industry 4.0 Connectivity
OPC UA for SAP/ERP integration
Predictive maintenance alerts:
金彩汇Bearing wear
Seal degradation
Corrosion monitoring
Shell Lubricants Supplier (Netherlands)
Challenge: VOC emissions exceeding 500ppm during solvent filling
Solution金彩汇: ATEX filler with carbon adsorption vapor recovery
Results:
▶ VOC emissions <5ppm
▶ ±0.08% accuracy
▶ ROI in 14 months
Certifications:
金彩汇ATEX 2014/34/EU (Zone 1/21)
金彩汇IECEx IEC 60079 Series
金彩汇API 675 (Positive Displacement Pumps)
金彩汇PED 2014/68/EU Category IV
Critical Upgrades:
| Module | Function |
|---|---|
| Robotic Tote Handling | Auto lid placement/sealing |
| Inline Viscosity Probe | Real-time adjustment (±2 cP) |
| Cryogenic Cooling | For low-boiling solvents (-40°C) |
| AR Maintenance Guide | HoloLens-assisted repairs |
24/7 Hazardous Response Team
Remote SIL diagnostics via VPN
Critical Spares Program:
Ex-proof Coriolis meters
Vapor recovery cartridges
Hastelloy valves
Global delivery ≤72h from Shanghai/Rotterdam/Houston hubs
Digital Twin Integration
Real-time corrosion monitoring
Predictive seal replacement alerts
