Chemical-Resistant Pail Filling System Safe for Harsh Liquids!
金彩汇Industrial pail filler for corrosive liquids: 45 pails/hour, ±0.15% accuracy. Hastelloy C276 construction. ATEX Zone 1 certified. Zero leaks guaranteed.
- Brand： glzon
- Model： GZM_10L

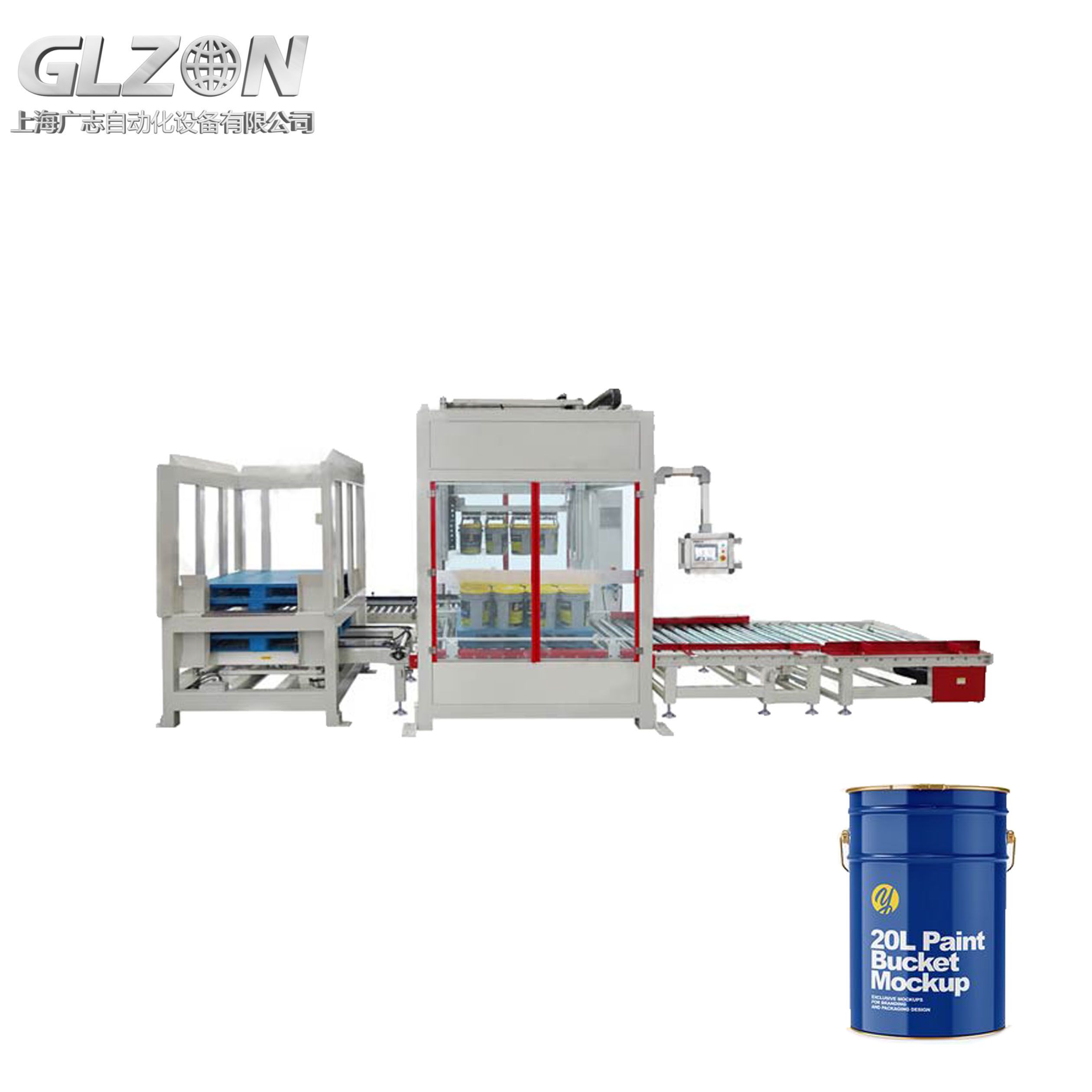

ChemGuard PailMaster CG-5000 Series
Industrial-Grade Chemical-Resistant Pail Filling System
Engineered for the World's Most Corrosive Liquids
Uncompromised Material Science
The CG-5000 Series integrates military-grade materials to conquer extreme chemical challenges:
Flow Path Construction:
Hastelloy C276 Manifold金彩汇: Withstands 37% HCl at 50°C (<0.01mm/yr corrosion per ASTM G31)
PTFE-Lined Transfer Lines金彩汇: Resists 98% H₂SO₄ at 80°C (0.05mm/yr erosion)
PEEK-Coated Nozzles: Maintains integrity in 50% NaOH at 100°C
Triple-Containment Sealing:
Primary Seal: Kalrez® 6375 perfluoroelastomer (-20°C to 327°C)
Secondary Barrier: Inflatable PTFE emergency bladder
Vapor Lock: Activated carbon adsorption (>99.95% VOC capture)
Technical Specifications
Parameter | CG-5100 (Standard) | CG-5200X (ATEX Zone 1) |
|---|---|---|
Capacity Range | 金彩汇5-30L (±0.15%) | 金彩汇5-30L (±0.2%) |
Throughput | 45 pails/hour | 金彩汇40 pails/hour |
Material Contact | 金彩汇Hastelloy C276 + Reinforced PTFE | Alloy 59 + PFA Lining |
Chemical Resistance | 金彩汇pH 0-14, 0-150°C | 金彩汇+ HF Acid Compatibility |
Filling Accuracy | ±0.15% mass flow | ±0.2% gravimetric |
Seal Lifespan | 金彩汇50,000 cycles (ISO 15848-1 Class AH) | 45,000 cycles |
Power Requirements | 金彩汇380V/50Hz, 4.2kW | 金彩汇24VDC Ex ia |
Compressed Air | 金彩汇90 L/min @ 0.6MPa | 80 L/min @ 0.6MPa |
Decontamination | 金彩汇Acid/Alkaline CIP (15 min cycle) | Solvent Purge (20 min) |
Safety Certifications | 金彩汇CE PED 2014/68/EU | ATEX/IECEx Zone 1/21 |
Industry-Specific Performance
Semiconductor Manufacturing
Hydrofluoric Acid Handling:
Alloy 59 flow path withstands 49% HF at 60°C
Particulate control: <5 particles/ml @ 0.1μm (ISO Class 4)
SEMI F57 Compliance金彩汇: Validated for 10,000 operational hours
Wastewater Treatment
Application | Performance |
|---|---|
30% Ferric Chloride | ±0.18% accuracy @ 20°C |
pH 1.5 Sulfuric Acid | 金彩汇Zero leakage (500-cycle test) |
Metal Surface Processing
金彩汇Chromic acid (40%) filling with ΔT±0.5°C control
金彩汇Cyanide bath packaging with ATEX-rated vapor recovery
Safety Engineering
Critical Hazard Mitigation:
Skin Contact Prevention:
金彩汇Robotic pail handling with light curtains
Emergency drench showers integrated at stations
Vapor Control System:
金彩汇Real-time VOC monitoring (1ppm sensitivity)
Negative pressure hoods with >99.95% capture rate
Spill Containment:
304 SS drip trays with 50L capacity
金彩汇Laser-guided leak detection (response <0.5s)
Validation & Compliance
BASF Antwerp Case Study:
*"After deploying CG-5100 for 50% NaOH packaging:
Corrosion damage costs: Reduced from 0
Spill incidents: Eliminated over 24 months
Output stability金彩汇: Sustained 45 pails/hour at ±0.12% accuracy"*
Global Certifications:
► ATEX 2014/34/EU Category 1 (Zone 1) ► IECEx IEC 60079-0/11/31 ► ASME BPE-2022 (SD-3.12) ► SEMI F57 (HF Resistance) ► ISO 80079-36:2016
