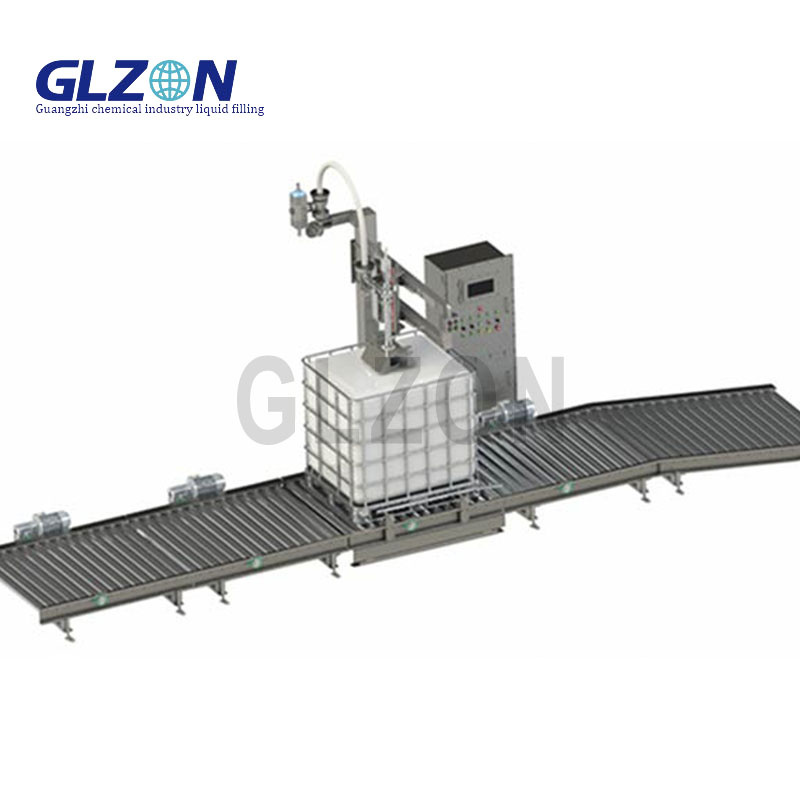

Butyl Acetate IBC Weighing Filling Machine for 1000L
金彩汇ATEX-certified IBC filler for 1000L butyl acetate. ±0.1% gravimetric accuracy, nitrogen inerting & VOC recovery. 15 fills/hour. CE/ISO 80079 compliant.
- Brand： glzon
- Model： GZM_1000L
Product Essence: Zero-Ignition Precision for Flammable Solvents
Shanghai Guangzhi Automation’s Butyl Acetate IBC Filler delivers ±0.1% gravimetric accuracy for 1000L IBC totes of flammable solvents. Engineered with ATEX Zone 1 certification, nitrogen inerting (O₂<0.5%), and closed-loop VOC recovery (≥99.5%), it achieves 15 fills/hour while eliminating explosion risks and ensuring OSHA 1910.106/EPA 40 CFR compliance.
Core Safety & Precision Technology
1. Explosion-Proof Weighing System
| Component | ATEX Specification |
|---|---|
| Load Cells | Ex ia IIC T4 intrinsically safe |
| Filling Head | Ex d pressurized enclosure |
| Control Cabinet | Ex p purged (IP66) |
| Static Control | Conductive hoses (<10⁵ Ω) + auto-grounding |
2. Precision Solvent Handling
Coriolis Mass Flow Meters:
金彩汇±0.1% accuracy (OIML R60 Class 0.5)
金彩汇Auto-density compensation (0.87-0.88 g/cm³)
Low-Flow Final Phase:
50 L/min → 5 L/min transition to prevent static buildup
3. Zero-Emission Design
Dual-Stage VOC Control:
金彩汇Primary: Nitrogen blanket during filling
金彩汇Secondary: Carbon adsorption (≥99.5% capture)
Spill Containment:
金彩汇Secondary drip tray (200L capacity)
金彩汇Laser-guided flange alignment (±0.5mm)
Technical Specifications
| Parameter | Standard Model | ATEX Model |
|---|---|---|
| Filling Range | 500-1000L (±0.1%) | 500-1000L (±0.15%) |
| Flow Rate | 100-300 L/min | 80-250 L/min |
| Viscosity | 0.70 cP @ 20°C | Same |
| Material Contact | 316L SS + PTFE | 316L SS + PTFE |
| VOC Recovery | ≥99.5% (EPA Method 21) | ≥99.7% |
| Power | 380V/50Hz, 4.5kW | 24VDC intrinsic safety |
| N₂ Consumption | 20 L/min @ 4bar | 15 L/min @ 4bar |
| Throughput | 15 fills/hour | 12 fills/hour |
| Footprint (L×W×H) | 3500×2200×3000mm | 3700×2200×3000mm |
Butyl Acetate-Specific Engineering
| Challenge | Guangzhi Solution |
|---|---|
| Low Flash Point (22°C) | Explosion-proof sensors + nitrogen inerting |
| Static Accumulation | Conductive filters (<10⁶ Ω) |
| Rubber Degradation | PTFE/Kalrez seals |
| VOC Emissions | Carbon adsorption with auto-regeneration |
Smart Control System
10" ATEX HMI (Ex de IIC T6)
Real-time dashboards:
金彩汇VOC recovery efficiency
O₂ concentration (ppm)
金彩汇Fill curve analytics
金彩汇Predictive alerts:
金彩汇Carbon saturation monitoring
Seal integrity degradation
Safety Interlocks (SIL3)
Auto-shutdown if:
O₂ >1% in vapor space
Grounding fault detected
VOC >10% LEL
金彩汇Emergency nitrogen purge
Operational Impact
US Chemical Distributor Case:
Reduced solvent loss from 0.8% to 0.05%
Eliminated VOC compliance fines
ROI in 14 months via reduced N₂ consumption
Global Compliance & Upgrades
Certifications:
金彩汇ATEX 2014/34/EU (Zone 1)
IECEx IEC 60079-0
OIML R60 Class 0.5
金彩汇EPA 40 CFR Part 63 Subpart G
Critical Upgrades:
| Module | Function |
|---|---|
| Robotic Lid Handler | Auto-sealing with torque control |
| In-line Flash Point Tester | Real-time safety margin monitoring |
| Blockchain Batch Log | Immutable compliance records |
| AR Safety Training | HoloLens emergency drill simulator |
Support & Service
24/7 Hazardous Response Team:
金彩汇Remote diagnostics via intrinsically safe IIoT
Critical Spares Dispatch ≤48h:
Ex-proof Coriolis meters
金彩汇VOC carbon cartridges
金彩汇Kalrez sealing kits
金彩汇Lifetime explosion safety audits
