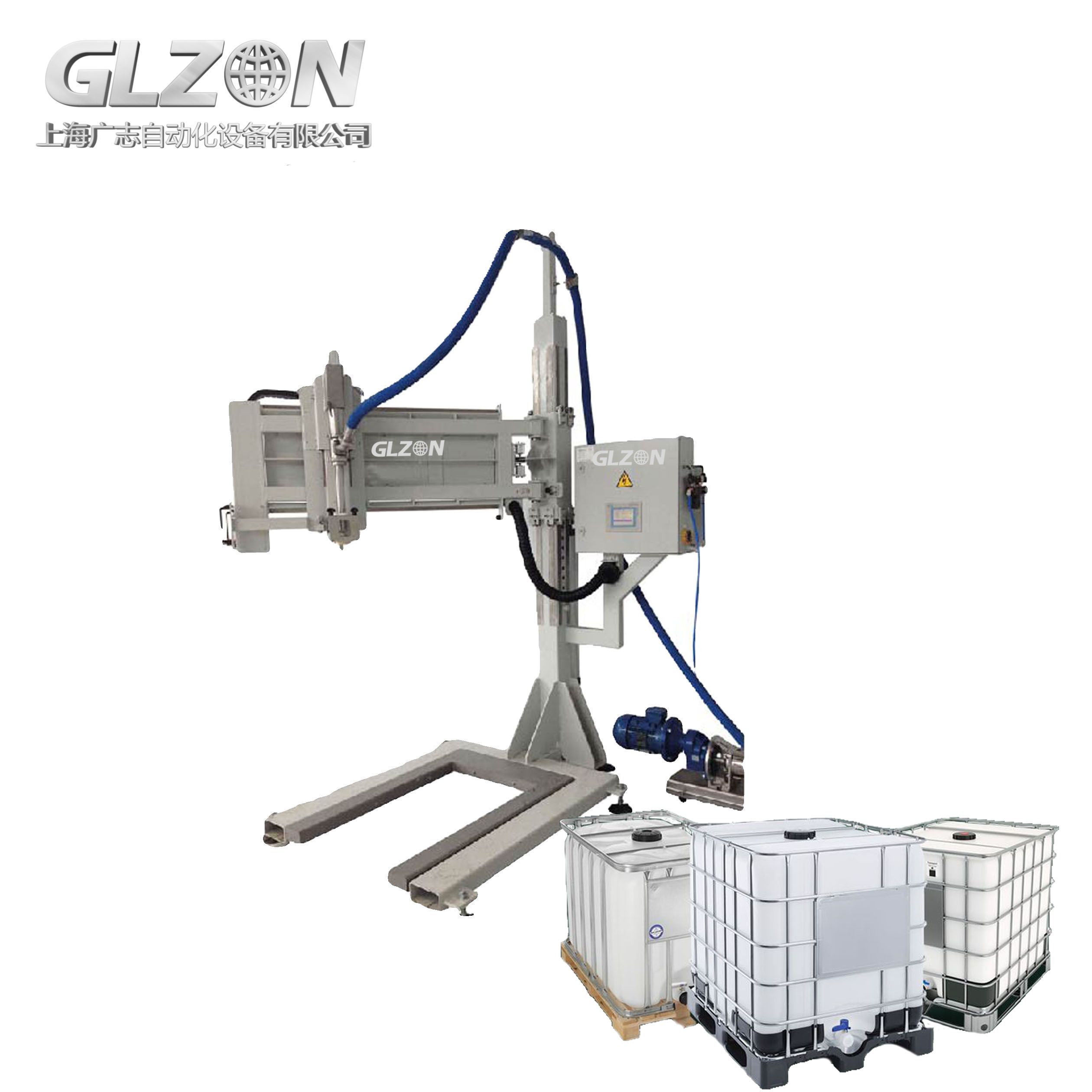

Bulk Chemical Filling Solutions with Our IBC Filling Machine
金彩汇Automated IBC filling system for bulk chemicals: 1500L capacity, ±0.3% accuracy. ATEX Zone 0 & >99% VOC capture. cGMP/SIL3 certified.
- Brand： glzon
- Model： GZM_1000L
ChemFill IBC-2000 Series
Intelligent Bulk Chemical Filling System
Precision. Safety. Scalability.
Technical Specifications
Parameter | IBC-2100 (Standard) | IBC-2200X (ATEX) | IBC-2300C (Corrosive) |
|---|---|---|---|
Capacity | 金彩汇500-1500L (±0.3%) | 500-1250L (±0.4%) | 300-1000L (±0.25%) |
Throughput | 金彩汇20 IBCs/hour | 金彩汇18 IBCs/hour | 15 IBCs/hour |
Flow Range | 50-3,000 L/min | 金彩汇50-2,500 L/min | 金彩汇30-1,500 L/min |
Accuracy | 金彩汇±0.3% (Coriolis) | ±0.4% | ±0.25% (Mass Flow) |
Viscosity Range | 1-50,000 cP | 5-40,000 cP | 1-100,000 cP |
Material Contact | 316L SS + PTFE | Hastelloy C276 | Alloy 20 + PTFE Lining |
Explosion Proof | - | ATEX Zone 1/21 | N/A |
VOC Control | Carbon Adsorption >99% | RTO >99.5% | 金彩汇Condensation + Carbon |
Power | 380V/50Hz, 18.5kW | 金彩汇24VDC Ex ia | 金彩汇380V/50Hz, 22kW |
N₂ Inerting | 40 L/min | 50 L/min | 35 L/min |
Clean Time | 金彩汇CIP: 20 min | Solvent Wash: 30 min | 金彩汇Acid Wash: 45 min |
Footprint (L×W×H) | 4500×2800×3500mm | 金彩汇4800×3000×3800mm | 4600×2900×3600mm |
Core Innovations
1. Triple-Shield Safety System
Certifications:
ATEX II 2G/2D Ex db eb IIC T4
SIL 3 Safety Interlocks (IEC 61511)
API RP 500 Flammable Liquid Compliance
2. Adaptive Chemical Handling
Chemical Type | Technology | Performance |
|---|---|---|
Acids (H₂SO₄/HCl) | PTFE-Lined Alloy 20 | Corrosion rate <0.1mm/year |
Solvents (Acetone/Toluene) | 金彩汇Submerged filling nozzle | Static dissipation <5kV |
Polymers (Epoxy/Resin) | Heated path (50-80°C) | 金彩汇Viscosity stability ±2% |
Oxidizers (H₂O₂) | 金彩汇Decontamination rinse port | 金彩汇Residual <1ppm |
Industry-Specific Engineering
Petrochemical Plants
API 2517 Vapor Recovery Compliance
Crude Oil Derivative Compatibility
金彩汇SIL 3 Overfill Protection
Pharma Bulk Synthesis
Feature | Certification |
|---|---|
cGMP Compliance | FDA 21 CFR 211.65 |
CIP/SIP Validation | 金彩汇ASME BPE-2022 |
Bioburden Control | 金彩汇<1 CFU/ml rinse water |
Agrochemical Production
Herbicide/Pesticide Formulation
Dedicated Allergen Purge Protocol
USDA 3-A Washdown Design
Smart Control Ecosystem
15" HMI with Chemical Intelligence™
AI Modules:
Corrosion Prediction:
Parameter
Maintenance Alert
pH drift >±0.5
金彩汇Material compatibility check
金彩汇Conductivity spike
金彩汇Seal degradation warning
Spill Prevention:
Risk
Action
Level sensor fail
金彩汇Triple-redundant cutoff
金彩汇Pressure surge
金彩汇Auto-pressure relief valves
Performance Comparison
Metric | Manual Filling | IBC-2100 | Improvement |
|---|---|---|---|
Spill Incidence | 3-5% per batch | <0.01% | ↓99.7% |
Operator Exposure | 8hrs direct contact | Zero | 100% reduction |
Batch Accuracy | ±2.5% | ±0.3% | ↑733% |
VOC Emissions | 金彩汇500-1000 ppm | <5 ppm | ↓99.5% |
Modular Upgrades
Module | Function | Industry Application |
|---|---|---|
Inline Rheometer | Real-time viscosity (±50 cP) | Polymer production |
Cryogenic Fill | 金彩汇-50°C LN₂ cooling | 金彩汇Low-VOC chemical handling |
Additive Injection | 金彩汇8-port dosing (±0.5%) | 金彩汇Custom formulation blending |
AR Safety Inspector | 金彩汇HoloLens-assisted zone monitoring | Explosive atmosphere plants |
Certifications
► ATEX 2014/34/EU (Zone 0/1/2) ► ASME B31.3 Process Piping ► FDA 21 CFR 210-211 (cGMP) ► IECEx IEC 60079 Series ► ISO 80079-36/37 Dust Explosion
APPLICABLE BARREL TYPE
