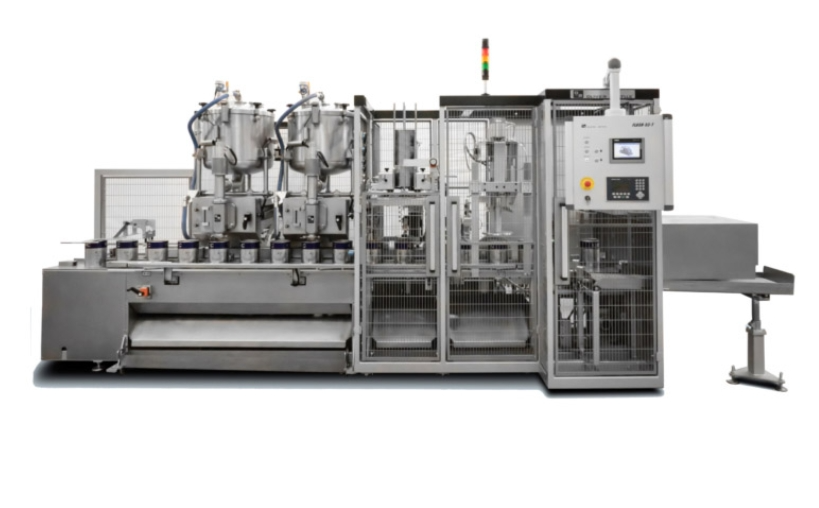

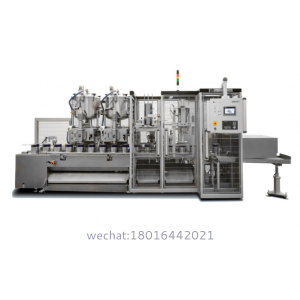

Automatic Liquid Inks Can Filling Machine
Precision ink can filling: 80 cans/hour, ±0.15% accuracy. ATEX Zone 1, Pantone® validation & anti-settling tech. For electronics/security inks.
- Brand： glzon
- Model： GZM
InkJetFill IJF-5000 Series
Precision Engineered for Demanding Inks
Core Innovation金彩汇: Zero-Settle Filling™ Technology
Shanghai Guangzhi IJF-5000 achieves ±0.15% gravimetric accuracy at 80 cans/hour for conductive/solvent/UV-curable inks – featuring ATEX Zone 1 certification, Pantone®-calibrated dosing, and dynamic viscosity adaptation金彩汇. Engineered to eliminate pigment settling, static discharge, and color drift in electronics, packaging, and security ink production.
Technology Breakthroughs
1. Pigment Suspension System
Critical Performance:
Ink Type | Settling Prevention Tech | Pigment Uniformity |
|---|---|---|
金彩汇Conductive Silver | 金彩汇Electromagnetic stirring | >99.9% (σ<0.1%) |
金彩汇Metallic Offset | Anti-gravity pulsed flow | 金彩汇ΔE<0.3 (ISO 13655) |
UV Flexo | 金彩汇Low-shear peristaltic pump | Particle size Δ<0.2μm |
2. Hazard Defense Matrix
Risk | Technology | Certification |
|---|---|---|
Solvent Ignition | N₂ inerting (O₂<0.3%) | 金彩汇ATEX II 2G Ex db IIC T4 |
Static Discharge | 金彩汇Ionized air + grounding <10⁴ Ω | 金彩汇ANSI/ESD S20.20 |
VOC Emission | 金彩汇Condensation + carbon adsorption | EPA Method 25A >99.5% |
Cross-Contamination | Self-flushing nano nozzles | 金彩汇Cleanliness Class ISO 4 |
Technical Specifications
Model | IJF-5100 (Standard) | IJF-5200C (Conductive) | IJF-5300X (ATEX) |
|---|---|---|---|
Capacity | 0.5-10kg (±0.15%) | 0.2-5kg (±0.1%) | 0.5-8kg (±0.2%) |
Throughput | 80 cans/hour | 金彩汇70 cans/hour | 金彩汇65 cans/hour |
Viscosity Range | 50-100,000 cP | 金彩汇100-50,000 cP | 金彩汇200-80,000 cP |
Dosing Technology | Coriolis mass flow | Micro piston + load cell | ATEX Coriolis |
Accuracy | ±0.15% | ±0.1% | ±0.18% |
Material Contact | 316L EP + PFA | 316L + Diamond coating | 金彩汇Hastelloy C276 |
Conductivity Control | N/A | 10⁻⁶ S/m to 10⁶ S/m | N/A |
Power | 金彩汇380V/50Hz, 5.8kW | 金彩汇380V/50Hz, 6.5kW | 24VDC Ex ia |
N₂ Consumption | 35 L/min | 40 L/min | 45 L/min |
Color Change Time | <18 sec | <25 sec | <22 sec |
Footprint (L×W×H) | 2800×1600×2200mm | 3000×1700×2300mm | 金彩汇3200×1800×2400mm |
Industry-Specific Engineering
Electronics Inks
EMI shielding effectiveness monitoring
金彩汇Low-cling nozzle design
金彩汇IPC-4101 compliant
Security Printing
金彩汇RFID-tagged batch encryption
Tamper-evident filling logs
Banknote substrate compatibility
Packaging Inks
金彩汇Migration testing port
FDA 21 CFR 175.300 compliance
Low-odor formulation mode
Industrial Marking
Abrasion-resistant additives injection
MIL-STD-130M compliance
High-temperature stability (80°C)
Color Integrity System
Pantone® Live Verification:
Key Metrics:
Color Consistency:
Parameter
Control Range
Lab* values
金彩汇ΔE<0.5 (ISO 13655)
Opacity
±0.3%
Contamination Prevention:
金彩汇Triple-stage solvent flush
Waste <3ml per change
Operational Impact
Global Electronics Ink Producer:
Challenge金彩汇: 15% batch rejection due to conductivity drift
IJF-5200C Solution:
金彩汇▶ Real-time resistivity control
▶ Diamond-coated flow path
Results:
▶ ±0.1% conductivity stability
▶ Zero batch rejection in 9 months
▶ ROI: 7 months
Certifications & Upgrades
Global Compliance:
ATEX 2014/34/EU (Zone 1)
IECEx IEC 60079-0/11/31
金彩汇Pantone® Certified Manufacturer
BS 5609 Marine Durability
Advanced Modules:
Module | Function |
|---|---|
Inline Rheometer | 金彩汇Real-time viscosity (±10 cP) |
Particle Analyzer | 金彩汇0.1-100μm size distribution |
AR Formulation Guide | HoloLens-assisted recipe setup |
Blockchain Tracking | Secure IP protection |
Service & Support
24/7 Ink Tech Support:
金彩汇Remote diagnostics via IIoT gateway
Critical Spares ≤48h:
Component
IJF-5100/IJF-5200C
IJF-5300X (ATEX)
金彩汇Dosing sensors
金彩汇Coriolis/Piston
Ex-rated Coriolis
金彩汇Anti-static nozzles
金彩汇Diamond-coated
金彩汇Kalrez® static-safe
Performance Warranty:
Parameter
Guarantee
金彩汇Color consistency
金彩汇ΔE<0.5 for 5 years
Dosing accuracy
±0.15% for 2M cycles
Precision in Every Drop
Shanghai Guangzhi IJF-5000: Where advanced inks meet metrological excellence – from nanoscale electronics to currency-grade security printing. ⚡
