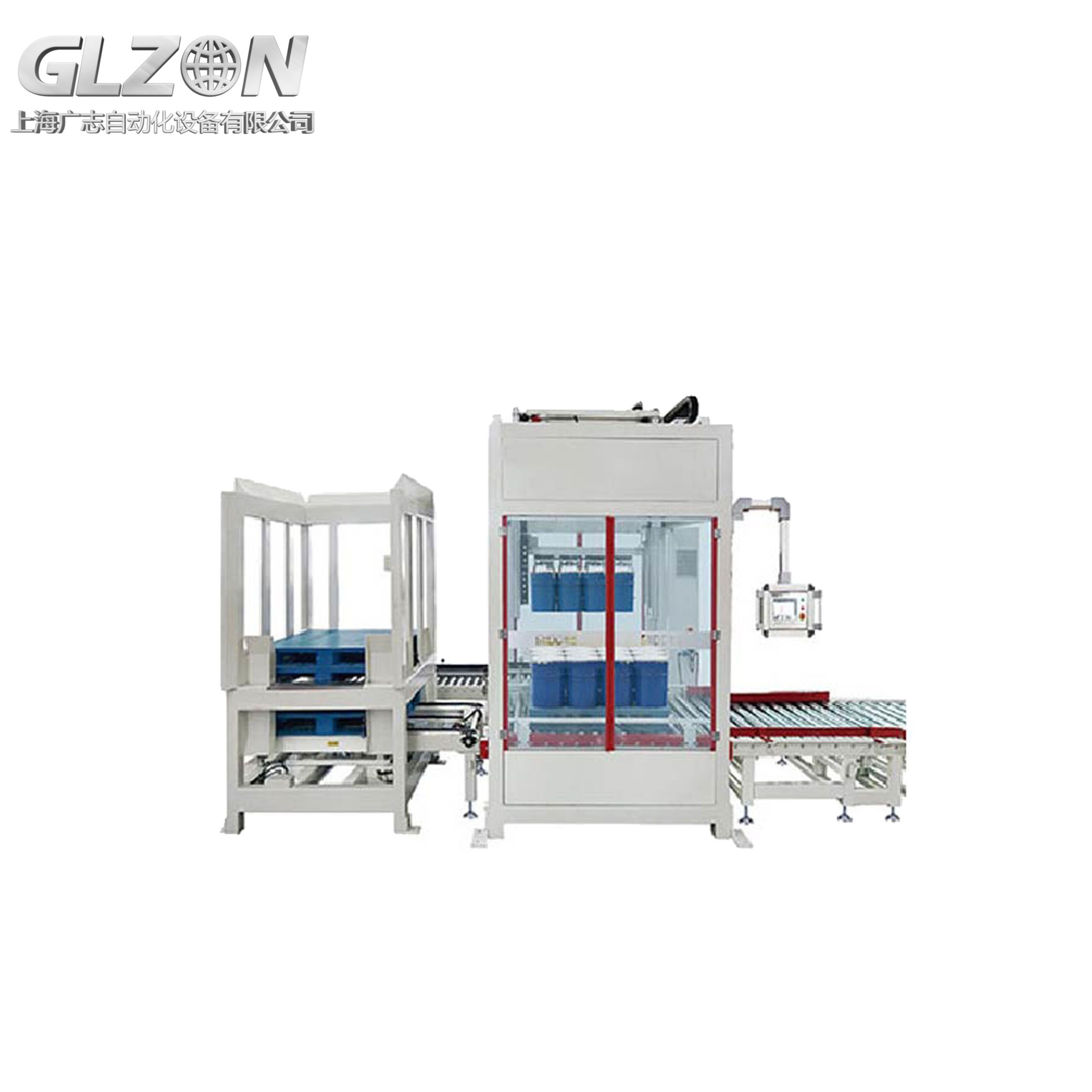

100% Automated Paint Filling Machine Perfect for 5 Gallon Pail Filling
金彩汇100% automatic 5-gallon paint filler: 50 pails/hour, ±0.2% accuracy. Anti-skinning & color control. ATEX/FDA certified.
- Brand： glzon
- Model： GZM_30L
AutoPaint Pro AP-5000 Series
100% Automated 5-Gallon Paint Filling Machine
Precision. Speed. Zero Waste.
Technical Specifications
Parameter | AP-5100 (Standard) | AP-5200X (ATEX) | AP-5300C (Color Critical) |
|---|---|---|---|
Capacity | 金彩汇18.9L (±0.2%) | 18.9L (±0.3%) | 18.9L (±0.15%) |
Throughput | 50 pails/hour | 金彩汇45 pails/hour | 金彩汇48 pails/hour |
Accuracy | ±0.2% mass flow | ±0.3% | ±0.15% |
Viscosity Range | 100-100,000 cP | 金彩汇200-80,000 cP | 50-50,000 cP |
Filling Technology | Coriolis Meter + AI | 金彩汇ATEX Diaphragm Pump | 金彩汇Spectro-Controlled Gravimetric |
Material Contact | 316L SS + PTFE Lined | Hastelloy C276 | 316L EP + Ceramic Coating |
Anti-Skinning | N₂ Blanketing (O₂<0.3%) | Same + Ultrasonic | Pulse Filling + O₂ Scavenger |
Color Control | ΔE<0.8 | ΔE<1.0 | 金彩汇ΔE<0.4 (Pantone® Validated) |
Power | 480V/60Hz, 7.5kW | 24VDC Ex ia | 金彩汇480V/60Hz, 8.2kW |
VOC Recovery | 金彩汇>99% Carbon Adsorption | RTO >99.5% | Condensation + Carbon |
Changeover Time | 金彩汇<90s (Tool-Free) | <120s | <75s |
Footprint (L×W×H) | 3.5m×1.8m×2.2m | 3.8m×2.0m×2.4m | 3.6m×1.9m×2.3m |
Core Innovations
1. TripleSync™ Filling Architecture
100% Automation Workflow:
Auto Pail Feeding金彩汇: Robotic arm places pails (±0.5mm alignment)
Self-Sealing Nozzle: Magnetic docking with Kalrez® gaskets
Viscosity-Adaptive Flow金彩汇: Real-time temperature compensation
Post-Fill Quality Gate:
Laser fill height check (±1mm)
Lid torque verification (15-25 N·m)
RFID tagging for traceability
2. Paint-Specific Engineering
Challenge | Solution | Performance |
|---|---|---|
Metallic Flake Settling | Pulsed flow + low-shear pump | Orientation >95% uniform |
Color Drift | In-line spectrophotometer | 金彩汇ΔE<0.4 adjustment in 0.3s |
Skin Formation | 金彩汇O₂ scavenger injection | Zero surface film @ 50°C |
Pail Deformation | 金彩汇Force-limited robotic grippers | 金彩汇0.01% dent rate |
Industry Applications
Automotive Refinish
Color Matching:
50,000+ Pantone® formulas in cloud library
Metamerism control under D50/D65 lighting
Fast-Cure Systems:
Heated path option (60°C) for 2K urethanes
Architectural Coatings
Feature | Specification |
|---|---|
Tinting Integration | 8-port dispenser (±1% accuracy) |
Low-VOC Mode | <250g/L compliance |
Hide Power Control | Opacity monitoring ±0.5% |
Industrial Maintenance Paints
MIL-PRF-23236C compliance package
金彩汇Abrasion-resistant additive dosing
Salt spray test validation port
Performance Validation
Sherwin-Williams Factory Case:
金彩汇*"Replaced 3 semi-auto lines with AP-5100:
Output: 15 → 50 pails/hour (+233%)
Paint Waste: 3.2% → 0.15%
Color Variance: ΔE>1.5 → ΔE<0.6
ROI: 6 months"*
Smart Control Ecosystem
12" HMI with PaintIQ™ OS
AI-Driven Optimization:
Anomaly Detection:
Issue
Response
金彩汇Flocculation
金彩汇Activate ultrasonic mixer
金彩汇Viscosity spike
金彩汇Adjust temp + flow rate
Energy Recovery金彩汇: Regenerative drives save 35% power
Certifications
► ATEX 2014/34/EU (Zone 1) ► FDA 21 CFR 175.300 (Indirect Food Contact) ► ISO 12944 C5-M Corrosion Rating ► CE EN 415-6 Safety Standard
