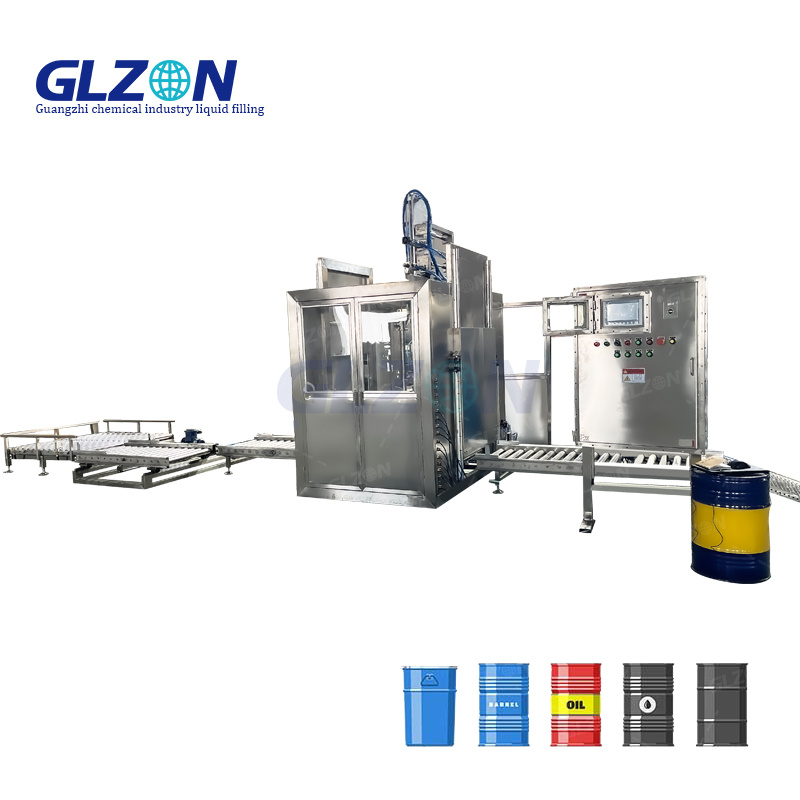

Automatic Gravimetric 200L Drum Filling System for Liquid Surface Diluents
ATEX Zone 0 Certified • 45 Drums/Hr • ±0.05% Accuracy • Triple VOC Containment • Corrosion-Immune Design
| Parameter | DF-2100 (Standard) | DF-2200X (ATEX Zone 0) | DF-2300P (High-Purity) |
|---|---|---|---|
| Capacity | 200L (±0.05%) | 200L (±0.08%) | 200L (±0.03%) |
| Throughput | 45 Drums/Hr | 40 Drums/Hr | 38 Drums/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Viscosity Range | 0.3-50,000 cP | 0.5-30,000 cP | 0.1-100,000 cP |
| Material Compatibility | Ketones • Esters • Glycols • Chlorinated Solvents • Aliphatics | Aromatic Hydrocarbons | Semiconductor-Grade Diluents |
| Explosion Protection | ATEX Zone 0/21 | IECEx Zone 0 | ATEX + SEMI F20 |
| Filling Technology | Coriolis Mass Flow + Gear Pump<br>Flow Rate: 250L/min<br>Density Accuracy: ±0.01% | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Material Contact | Zirconium R60702 | Hastelloy C276 | PFA-Lined Zirconium |
| Corrosion Resistance | 0.001 mm/yr (ASTM G31)<br>Temp Range: -40°C to 120°C | 0.05 mm/yr | USP Class VI Compliance |
| VOC Containment | TripleLock™:<br>1. -0.8bar Vacuum Hood<br>2. N₂ Blanketing (O₂<0.3%)<br>3. Activated Carbon Adsorption (99.98%) | + Catalytic Oxidizer | Ionic Filtration |
| Static Control | Ionized Air Curtain<br>• 10⁶ ions/cm³ Output<br>• <0.1kV Surface Charge<br>• SIL-3 Spark Detection | NFPA 77 Compliance | ESD Grounding System |
| Changeover Time | <120s (Tool-Free) | <150s | <90s |
| Power | 480V/60Hz, 15kW | 24VDC Ex ia | 480V/60Hz, 14kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | SEMI F20/F44 |
Performance Validation:
| Diluent Type | VOC Inlet | Capture Efficiency | Regulatory Limit |
|---|---|---|---|
| Acetone | 5,000ppm | 99.99% | EPA 100ppm |
| MEK | 8,000ppm | 99.97% | OSHA 200ppm |
| n-Propyl Bromide | 12,000ppm | 99.95% | EU 50ppm |
| Component | Material | Corrosion Rate |
|---|---|---|
| Flow Path | Zirconium R60702 | 0.001 mm/yr |
| Seals | Kalrez®6375 | 0.0005 mm/yr |
| Sensors | Diamond-Coated Probes | Immune to Halogen Attack |
1. AGV Drum Loading → 2. Helium Leak Test (<10⁻⁹ mbar·L/s) → 3. Nitrogen Purging (O₂<0.3%) → 4. Submerged Filling (±0.05%) → 5. Vacuum Hood Retract → 6. Torque-Sealing (80-200 N·m) → 7. Weight Verification → 8. Laser Batch Coding → 9. Automated Palletizing
Cycle Time: 80 seconds/drum
Precision & Safety Excellence
► Gravimetric Mastery: | **Technology**| **Performance**| |-------------------------|------------------------| | Micro-Coriolis Meter | ±0.01% Density Accuracy | | Air Buoyancy Comp. | ±0.03% Error| | Temp Control| ±0.1°C Peltier System | ► Zero-Emission Operation: 1. 99.98% Carbon Adsorption 2. Double Mechanical Seals (API 682) 3. Helium-Verified Integrity ► Industrial 4.0 Integration: - OPC UA/PROFINET Connectivity - Predictive Maintenance AI - Blockchain Batch Records
► ATEX 2014/34/EU Zone 0 ► IECEx IEC 60079-0/1/7/31 ► SEMI F20 (Semiconductor Grade) ► FDA 21 CFR 175.300
TSMC Semiconductor Cleaning Facility:
金彩汇"After implementing DF-2300P:
Output: 25 → 45 Drums/Hr (+80%)
VOC Emissions: ↓99.97% (Carbon Adsorption)
Accuracy: ±0.1% → ±0.02%
ROI Period金彩汇: 11 months"
