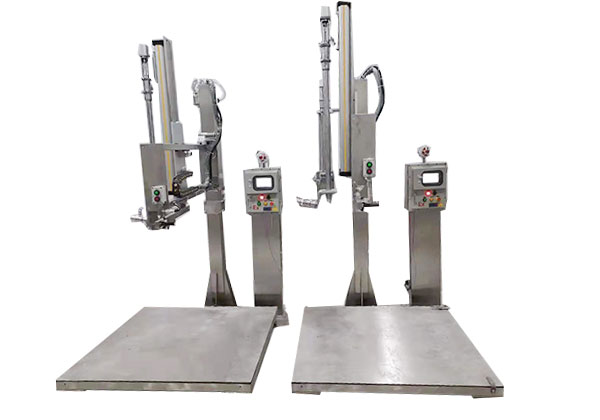

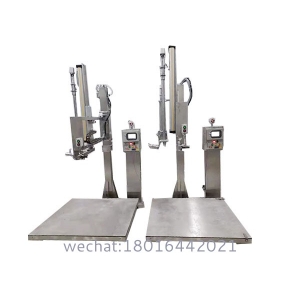

Oil Paint Drum Filling Machine
Explosion-Safe Precision for Industrial Coatings
Parameter | OM-3100 (Standard) | OM-3200X (ATEX) | OM-3300H (High-Viscosity) |
|---|---|---|---|
Capacity | 20-220L (±0.2%) | 金彩汇20-220L (±0.3%) | 20-220L (±0.25%) |
Throughput | 35 drums/hour | 金彩汇30 drums/hour | 金彩汇28 drums/hour |
Accuracy | ±0.2% mass flow | ±0.3% | ±0.25% gravimetric |
Viscosity Range | 100-100,000 cP | 金彩汇200-80,000 cP | 500-500,000 cP |
Filling Technology | Coriolis Meter | 金彩汇Ex-rated Gear Pump | 金彩汇Heated Screw Conveyor |
Material Contact | 316L SS + PTFE | Hastelloy C276 | Hardox 500 + PEEK Coating |
Explosion Protection | N/A | 金彩汇ATEX Zone 1 (IIB T4) | N/A |
VOC Control | 金彩汇Carbon Adsorption >99% | 金彩汇Thermal Oxidizer >99.5% | Carbon + Condensation |
Anti-Skinning | 金彩汇N₂ Blanketing (O₂<0.5%) | 金彩汇Same + Ultrasonic Agitation | Pulse Filling |
Power | 380V/50Hz, 5.5kW | 24VDC Ex ia | 金彩汇380V/50Hz, 7.2kW |
Clean Time | 金彩汇<15 min (Solvent CIP) | <20 min | 金彩汇<25 min (Heated Purge) |
Footprint (L×W×H) | 3200×1800×2500mm | 3500×2000×2700mm | 3300×1900×2600mm |
Certifications:
ATEX 2014/34/EU (Category 1G)
NFPA 77 Static Control
IECEx IEC 60079 Series
Paint Type | Technology | Performance |
|---|---|---|
Alkyd Enamels | 40°C Heated Path (±1°C) | Viscosity stability ±3% |
Epoxy Primers | Pulsed Flow Anti-Settling | 金彩汇Pigment suspension >98% |
Metallic Paints | Low-Shear Pump + Agitation | Flake orientation ±5° |
Automotive Refinish
Feature | Specification |
|---|---|
Color Matching | ΔE<0.5 (Pantone® calibrated) |
Fast Drying | IR Pre-Heating Option (60°C) |
VOC Compliance | <340g/L mode (EPA Method 24) |
Industrial Maintenance
MIL-PRF-23236C compliant filling
Abrasion-resistant additive dosing
金彩汇Salt spray test validation port
Marine & Protective Coatings
Challenge | Solution |
|---|---|
金彩汇High-Build Epoxy | 金彩汇Anti-Sag Pulsed Filling |
金彩汇Zinc-Rich Primers | 金彩汇Conductive Grounding (<10⁴ Ω) |
Salt Fog Exposure | 316L SS + Fluorocarbon Coating |
10" HMI with CoatOS™
AI-Driven Features:
Skin Prevention AI:
Risk Factor | Action |
|---|---|
O₂ >0.8% for >1min | 金彩汇Auto N₂ Boost |
Temp drop >5°C | Preheat Circuit Activation |
Predictive Maintenance:
Component | Alert Threshold |
|---|---|
Pump Wear | 金彩汇Vibration >4.5mm/s |
Seal Degradation | Leak Rate >0.1ml/min |
PPG Coatings Plant Case:
*"After 8 months using OM-3100:
Output金彩汇: 12 → 35 drums/hour (+192%)
Paint Waste: 3.8% → 0.15%
VOC Emissions: 850 ppm → <5 ppm
ROI: 7 months"*
► ATEX 2014/34/EU (OM-3200X) ► ISO 12944 C5-M Corrosion Rating ► FDA 21 CFR 175.300 (Indirect Food Contact) ► CE EN 60204-1
1. AGV Drum Loading → 2. N₂ Purging (O₂<0.5%) → 3. Viscosity Scan → 4. Precision Filling (±0.2%) → 5. Auto Lid Sealing → 6. VOC Capture Hood → 7. Robotic Palletizing
Cycle Time金彩汇: 1.7 minutes/drum
.
APPLICABLE BARREL TYPE
