Adopting multiple core proprietary technologies such as rapid mechanical positioning and comprehensive detection by multiple sensor groups, it is suitable for the filling needs of containers ranging f

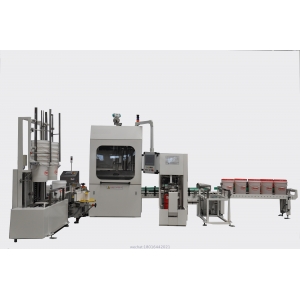

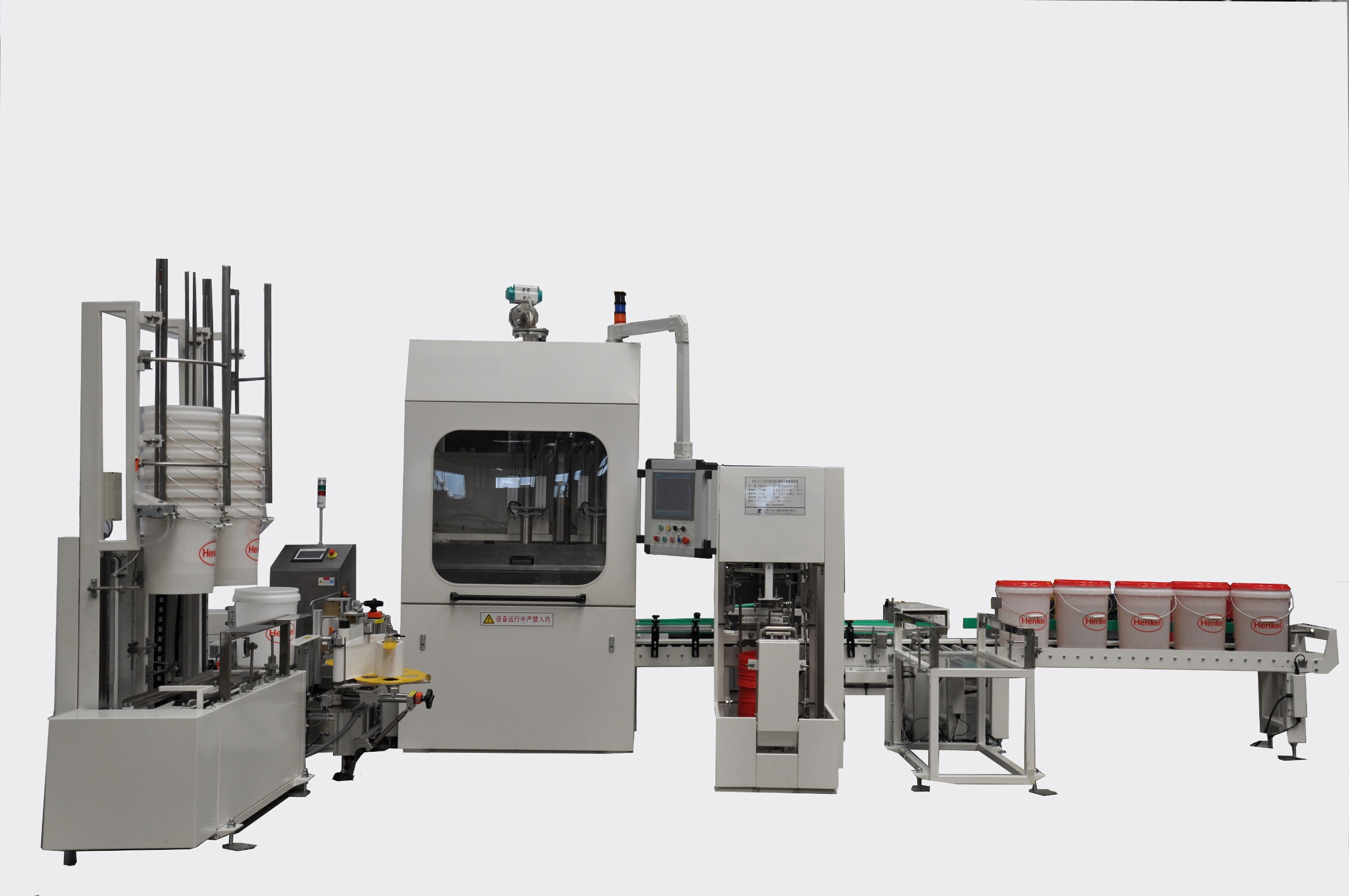

High-Output Fully Automatic Paint Filling Line
Precision. Speed. Explosion Safety.
Parameter | PFX-8100 (Standard) | PFX-8200X (ATEX) | PFX-8300M (Metallic Paints) |
|---|---|---|---|
Capacity | 金彩汇1-20L (±0.2%) | 金彩汇1-20L (±0.3%) | 金彩汇0.5-10L (±0.15%) |
Throughput | 200 cans/hour | 180 cans/hour | 150 cans/hour |
Viscosity Range | 金彩汇50-500,000 cP | 100-300,000 cP | 200-200,000 cP |
Dosing Technology | Coriolis mass flow | Same | Piston + Coriolis hybrid |
Material Contact | 316L SS + ECTFE | Hastelloy C276 | 金彩汇316L EP + PEEK |
Power | 480V/60Hz, 22kW | 24VDC Ex ia | 金彩汇480V/60Hz, 18kW |
N₂ Consumption | 40 L/min | 45 L/min | 35 L/min |
Color Change Time | <15 sec | <20 sec | <25 sec |
VOC Emission | 金彩汇<10mg/m³ (Carbon ads.) | 金彩汇<5mg/m³ (RTO) | <8mg/m³ |
Footprint (L×W) | 12m×4.5m | 14m×5m | 13m×4.8m |
Risk | Technology | Certification |
|---|---|---|
Solvent Ignition | N₂ inerting (O₂<0.5%) | 金彩汇ATEX II 2G Ex db IIC T4 |
Static Discharge | Ionized air curtain (<10⁶ Ω) | 金彩汇IEC 60079-32-1 |
Pigment Settling | Dual-helical agitator (5-30 RPM) | 金彩汇Prevents ΔE>0.5 color shift |
图片代码graph LRA[Auto Viscosity Detection] --> B{>50,000 cP?}
B -->|Yes| C[Heated Path @ 50°C]B -->|No| D[Standard Flow]C & D --> E[±0.2% Gravimetric Filling]YesNoAuto Viscosity DetectionUnsupported markdown: blockquoteHeated Path @ 50°CStandard Flow±0.2% Gravimetric FillingPerformance Metrics:
Metallic Paint Uniformity: Flake orientation ±3°
Throughput Stability: ±1% deviation at 200 cans/hour
Automotive Refinish
金彩汇Metamerism control (D65/D50 light sources)
金彩汇RFID formula verification (IATF 16949)
金彩汇Low-VOC mode (<250g/L)
Industrial Coatings
Feature | Specification |
|---|---|
金彩汇High-build epoxy | 金彩汇Anti-sag pulsed filling |
MIL-PRF-23236 | 金彩汇Compliance package |
Fast color change | 3-step purge (waste <5ml) |
Architectural Paints
Tinting system integration
Sheen uniformity monitoring
EPA Method 24 VOC testing
Global Paint Plant Case:
Conventional Line:
▶ 80 cans/hour ±1.2% accuracy
▶ $220k/year VOC fines
金彩汇▶ 5% color rework
PFX-8100 Solution:
▶ 200 cans/hour (±0.2%)
▶ VOC abatement >99%
▶ ROI: 9 months
