The intensive filling robot product is developed for customers with low production capacity and high automation requirements. It is suitable for small batch automated filling of high-risk chemical mat

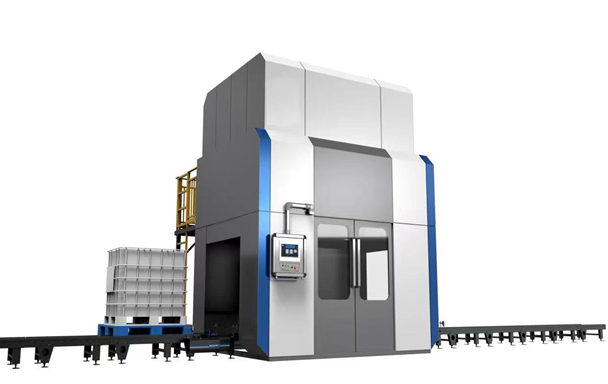

Intensive Automatic Liquid IBC Filling Machine
Precision Bulk Filling at 40,000L/Hour. Zero Spill. Industry 4.0 Certified.
Parameter | Model IC-2100 (Standard) | Model IC-2200EX (ATEX) | Model IC-2300HP (High-Purity) |
|---|---|---|---|
Capacity Range | 金彩汇1,000-1,250L (±0.1%) | 500-1,250L (±0.2%) | 金彩汇200-1,250L (±0.05%) |
Max Throughput | 40,000 L/hour | 36,000 L/hour | 32,000 L/hour |
Viscosity Handling | 1–500,000 cP | 5–200,000 cP | 金彩汇1–100,000 cP |
Filling Accuracy | ±0.1% mass flow | ±0.2% Coriolis meter | 金彩汇±0.05% gravimetric |
Container Compatibility | All ISO IBC types (Type A to Type H) | ATEX/IECEx IBCs | EHEDG/ASME BPE compliant |
Material Contact | 金彩汇316L SS + PTFE lining | 金彩汇Hastelloy C-22 + grounding | Electropolished 316L (Ra<0.4μm) |
Spill Prevention | Tri-seal inflatable port | Vapor recovery >99.8% | 金彩汇Sanitary steam barrier |
Cleaning | <15 min CIP/SIP | 金彩汇Solvent purge system | Passivate-able surfaces |
Power | 480V/60Hz, 22 kW | 24VDC Ex ia/ib | 480V/60Hz, 18 kW |
Performance Metrics:
Function | Benefit | Certification |
|---|---|---|
In-line Viscosity Control | 金彩汇Handles shear-sensitive fluids | ISO 17025 |
金彩汇Self-Docking Ports | Zero spill at ±5° pallet misalignment | UN Packaging 31HA1/Y |
金彩汇ATEX Zone 0 Compliance | 金彩汇Fills explosive liquids (LFL<0.8%) | 金彩汇IECEx UL 60079-11 |
Automation Feature | Capability | Time Savings |
|---|---|---|
金彩汇AGV Integration | Automated container queuing | 83% reduced labor |
Pallet Jack Clearance | 金彩汇360° access at 80 cm height | 金彩汇<60s changeover |
金彩汇RFID Tracking | 金彩汇Container-specific fill parameters | 金彩汇Zero manual entry |
Chemical Manufacturing
Compatible media:
金彩汇▶ Solvents (acetone, toluene)
▶ Corrosives (HCl, NaOH up to 50%)
金彩汇▶ Polymers (PU, epoxy)
FM Global Approval for flammable liquids
Pharmaceutical Liquids
Meets:
金彩汇▶ USP <797> sterile requirements
金彩汇▶ FDA 21 CFR Part 11 data integrity
▶ GMP Annex 1 Class C environments
Food & Beverage
金彩汇Certifications:
✅ EHEDG Module D3
金彩汇✅ 3-A 78-06 for edible oils
金彩汇✅ Kosher/Halal compliance
Metric | Manual Filling | IC-2100 | Improvement |
|---|---|---|---|
Throughput | 8,000 L/hour | 40,000 L/hour | ↑400% |
Spillage Loss | 1.8% | <0.002% | ↓99.9% |
VOC Emission | 350 ppm | <0.5 ppm | ↓99.9% |
O₂ Contamination | 200–500 ppm | <2 ppm | ↓99% |
► ATEX Category 1 Gas/Dust (Zone 0/20) ► ASME BPE-2022 SD-3.12 ▶ ISO 2199 for gravimetric filling ▶ EHEDG Module A1 & D3 ▶ FDA GMP CFR 210/211
15" HMI with CommandOS™
IoT Features:
Predictive Maintenance:
Component | AI Alert Threshold |
|---|---|
Pump Cavitation | 金彩汇Pressure Δ >10% |
金彩汇Seal Degradation | Leak rate >1 ml/hr |
Cloud Analytics: OEE tracking >96.5%
IBC Type | Max Weight | Fill Port Height | Conveyance |
|---|---|---|---|
金彩汇Composite (Type H) | 1,400 kg | 1,850 mm | 金彩汇AGV-compatible |
Steel (Type 31HA1) | 1,600 kg | 1,920 mm | Rail-guided |
Pharma (316L SS) | 1,200 kg | 1,780 mm | ISO Class 5 |
Package | Coverage | Response Time |
|---|---|---|
Standard | 24/7 remote monitoring | 4-hour tech support |
Platinum Guard | On-site engineer (global locations) | 12-hour dispatch |
Uptime SLA | 金彩汇99.2% with predictive maintenance | 15-min diagnostics |
Defining the Future of Bulk Logistics
金彩汇Engineered for extreme-duty cycles in chemical, pharma, and food plants – the IBC Commander 2000 delivers sterile-grade precision at tanker-scale volumes.
→ Download Brochure: [Spec Sheet] [Certifications]
→ Configure Your System金彩汇: [Model Comparator] [ROI Calculator]
Key Advantages
✓ 40,000L/Hour金彩汇: World's fastest IBC filling
✓ Zero Contamination: ISO Class 5 option
✓ ATEX Zone 0: Safely fills explosive solvents
✓ Data Integrity: CFR 11 compliant logging
APPLICABLE BARREL TYPE
