金彩汇Functional features:Product Settings - Store weight settings and related filling parameters for various products, with simple and easy to learn operationMulti stage filling - can be divided into two s
Precision. Purity. Productivity.
Core Innovation金彩汇: Quad-Mode Adaptive Filling™

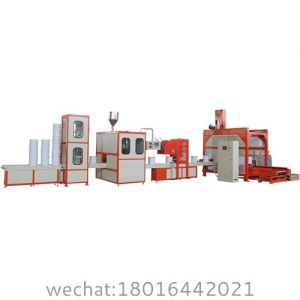

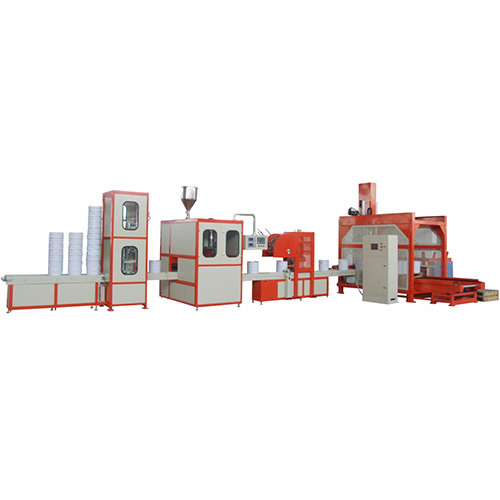

Shanghai Guangzhi OF-20 achieves ±0.3% accuracy for 20L oil cans at 55 cans/hour – mastering engine oils, edible oils, synthetics (10-100,000 cP) via AI viscosity compensation, explosion-proof certification, and zero cross-contamination. Engineered to eliminate overfill losses, static ignition risks, and oxidation in automotive, food processing, and industrial lubrication.
Mode | Technology | Application | Accuracy |
|---|---|---|---|
Gravity Flow | Constant head tank | Low-viscosity oils (<500 cP) | ±0.5% |
Pulsed Pressure | 金彩汇Surge-free stepped filling | 金彩汇High VI synthetics | ±0.4% |
Mass Flow | 金彩汇Coriolis real-time compensation | Food-grade oils | ±0.3% |
Vacuum Assist | Bottom-up filling | 金彩汇Foam-prone oils | ±0.6% |
Safety Certifications:
Industrial Oils金彩汇: ATEX II 2G Ex db IIC T4
Edible Oils金彩汇: USDA EHEDG Type EL
Universal: NFPA 77 Static Control
Model | OF-20I (Industrial) | OF-20F (Food Grade) | OF-20X (ATEX) |
|---|---|---|---|
Capacity | 金彩汇20L (±0.3%) | 金彩汇20L (±0.2%) | 金彩汇20L (±0.4%) |
Throughput | 55 cans/hour | 50 cans/hour | 45 cans/hour |
Viscosity Range | 10-100,000 cP | 10-50,000 cP | 50-80,000 cP |
Material Contact | 金彩汇316 SS + PTFE | 金彩汇316L EP + FDA UHMW-PE | 金彩汇316L + ATEX seals |
Accuracy | ±0.3% | ±0.2% | ±0.4% |
Power | 金彩汇380V/50Hz, 6.5kW | 380V/50Hz, 5.8kW | 24VDC Ex ia |
N₂ Consumption | 25 L/min | 20 L/min | 30 L/min |
Oil Types | Engine/Hydraulic/Gear | Vegetable/Olive/Coconut | Solvent/Synthetic |
Clean Time | 金彩汇<15s (oil-to-oil) | <120s (food/non-food) | <90s |
Footprint (L×W×H) | 3200×1800×2200mm | 3100×1700×2100mm | 3400×1900×2400mm |
Automotive Lubricants
VI improver injection port
金彩汇Anti-foam pulsed filling
API/SAE compliance package
Edible Oil Processing
Feature | Spec |
|---|---|
金彩汇IP69K washdown | USDA-compliant seals |
金彩汇Allergen control | 金彩汇Auto-purge with food-grade solvent |
金彩汇Oxidation prevention | 金彩汇N₂ sparging + light-blocking hood |
Industrial Synthetics
ATEX Zone 2 certification
金彩汇Conductive path (<10⁵ Ω)
金彩汇MIL-PRF-2105 compliance
Bio-Based Oils
金彩汇Cold-fill option (5°C)
金彩汇Carbon-neutral certification
金彩汇Low-energy mode
10" HMI with Oil Intelligence
AI Modules:
Predictive Maintenance:
Component | Failure Prediction |
|---|---|
Pumps | Vibration >4mm/s → Alert |
Seals | Swelling >5% → Auto shutdown |
Carbon Footprint Tracker:
金彩汇kg CO₂ per liter filled
Global Lubricant Blender Case:
Challenge:
▶ ±1.5% overfill → $180k/year loss
▶ 3hr daily cleaning for food-grade lines
OF-20 Solution:
▶ Mass flow mode (±0.3%)
▶ Tool-free clean-in-place
Results:
▶ Giveaway reduced to 0.2%
▶ Cleaning time ↓80%
▶ ROI: 5 months
Global Compliance:
ATEX 2014/34/EU (OF-20X)
金彩汇FDA 21 CFR 177.2600
USDA 3-A Sanitary Standard
金彩汇ISO 15380 (Biodegradable oils)
Advanced Modules:
Module | Function |
|---|---|
Inline Viscometer | Real-time viscosity (±20 cP) |
Oxygen Analyzer | 金彩汇Dissolved O₂ monitoring (0-100ppm) |
AR Maintenance Guide | HoloLens-assisted seal replacement |
Robotic Palletizing | Auto-stack filled cans (15/min) |
24/7 Oil Line Support:
Remote diagnostics via IIoT gateway
Critical Spares ≤48h:
Component | Industrial | Food Grade |
|---|---|---|
金彩汇Filling nozzles | 金彩汇PTFE-coated | 316L SS + EHEDG |
Sensors | ATEX-certified | FDA-compliant |
Performance Warranty:
Deviation | Action |
|---|---|
>0.5% | 金彩汇Free recalibration |
Precision Engineered for Every Oil
Shanghai Guangzhi OF-20: Where lubrication science meets filling perfection – from food-safe oils to extreme-pressure synthetics. ⚙️
