Functional features:Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learnMulti stage filling - can be divided into two stages (fa

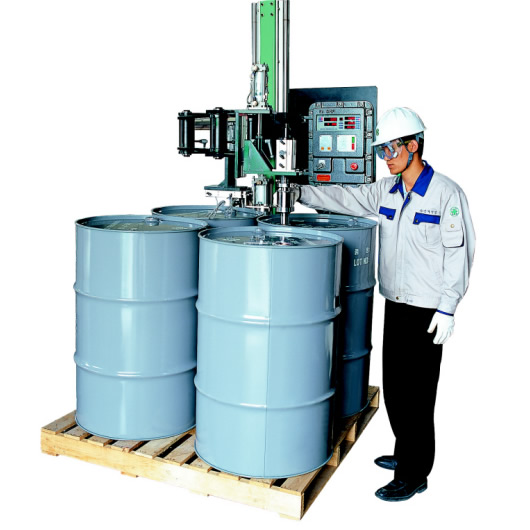

200L 4-Gun Varnishes Drum Filling Machine
Quadruple Speed. Zero Skin. Explosion-Safe.
Parameter | QF-4100 (Standard) | QF-4200X (ATEX) | QF-4300H (High-Build) |
|---|---|---|---|
Capacity | 180-220L (±0.15%) | 180-220L (±0.2%) | 金彩汇180-220L (±0.18%) |
Throughput | 40 drums/hour | 36 drums/hour | 38 drums/hour |
Accuracy | 金彩汇±0.15% mass flow | ±0.2% | ±0.18% |
Gun Configuration | 金彩汇4× Servo-Controlled | 4× Ex-rated | 4× Heated Nozzles (80°C) |
Viscosity Range | 50-500,000 cP | 金彩汇100-300,000 cP | 200-200,000 cP |
Filling Technology | Coriolis ×4 + AI Sync | 金彩汇ATEX Gear Pump ×4 | 金彩汇Pulsed Flow ×4 |
Skin Prevention | 金彩汇N₂ Blanketing (O₂<0.3%) | Same + O₂ Scavenger | 金彩汇Ultrasonic Agitation |
Material Contact | 金彩汇316L SS + PTFE | Hastelloy C276 | 316L EP + PEEK Coating |
VOC Control | Carbon Adsorption >99% | RTO >99.5% | Condensation + Carbon |
Power | 金彩汇480V/60Hz, 18kW | 24VDC Ex ia | 金彩汇480V/60Hz, 22kW |
N₂ Consumption | 50 L/min | 60 L/min | 55 L/min |
Color Change Time | <120s (Auto-Purge) | <150s | <130s |
Footprint (L×W×H) | 金彩汇4.5m×3.2m×3.0m | 4.8m×3.5m×3.2m | 金彩汇4.6m×3.3m×3.1m |
Performance Metrics:
Parameter | Single-Gun System | QF-4100 | Advantage |
|---|---|---|---|
金彩汇Fill Time (200L) | 210s | 52s | 75% faster |
Viscosity Shift Error | ±0.8% | ±0.15% | 金彩汇5x more stable |
金彩汇Residual Variation | 120ml/drum | <20ml/drum | ↓83% |
Technology | Function | Certification |
|---|---|---|
Micro-Environment Control | N₂ Curtain + O₂ Scavenger | 金彩汇ISO 2813 Gloss Retention |
Surface Agitation | 金彩汇40kHz Ultrasonic Waves | ASTM D1644 Yellowing Test |
Inert Gas Blanketing | 金彩汇O₂<0.3% at Drum Headspace | 金彩汇ASTM D1309 Skin Formation |
Furniture & Wood Coatings
Feature | Performance |
|---|---|
金彩汇Gloss Retention | ΔGU<2 (60° angle) |
金彩汇Ambering Prevention | 金彩汇UV Filter Nozzles (385nm cutoff) |
Brush Mark Reduction | Laminar Flow Filling |
Automotive Clearcoats
金彩汇Metamerism Control:
金彩汇D65/D50 Light Source Simulation
ΔE<0.4 Color Consistency
金彩汇Fast-Cure Compatibility:
Parameter | Specification |
|---|---|
IR Curing Support | 金彩汇60°C Pre-Heating Option |
VOC Compliance | 金彩汇<420g/L Mode |
Marine & Yacht Finishes
Anti-Blushing System:
金彩汇Dehumidified Air Curtain (RH<30%)
金彩汇Temperature Control (±1°C)
Salt Spray Resistance:
316L Stainless Steel Construction
金彩汇ISO 9227 Corrosion Rating C5M
15" HMI with VarnishOS™
AI Modules:
Predictive Skin Formation:
Risk Factor | Preventive Action |
|---|---|
O₂ >0.5% for >2min | Boost N₂ Flow 30% |
Temp Drop >3°C | Activate Nozzle Heating |
Anomaly Detection:
Fault | Resolution |
|---|---|
金彩汇Gun Flow Imbalance | Auto Re-Calibration in 5s |
金彩汇Viscosity Spike | 金彩汇Adjust Temp + Flow Rate |
► ATEX 2014/34/EU (Zone 1) - QF-4200X ► FDA 21 CFR 175.300 ► ISO 2813 Gloss Standard ► CE EN 12981:2005 ► ISO 12944 C5-M Corrosion
1. AGV Drum Loading → 2. Laser Lid Removal → 3. N₂ Purging (O₂<0.3%) → 4. Quad-Gun Synchronized Filling → 5. Ultrasonic Anti-Skinning → 6. Torque-Controlled Sealing → 7. VOC Capture Hood Engagement
Cycle Time: 90 seconds/drum
Sherwin-Williams Case Study:
*"After implementing QF-4100 for polyurethane varnishes:
Output: 15 → 40 drums/hour (+167%)
Skin Waste: 3.2% → 0.07%
VOC Abatement: >99.2% (EPA Method 25A)
ROI: 5.8 months"*
APPLICABLE BARREL TYPE
