Functional features:˙ Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learn˙ Multi stage filling - can be divided into two stages

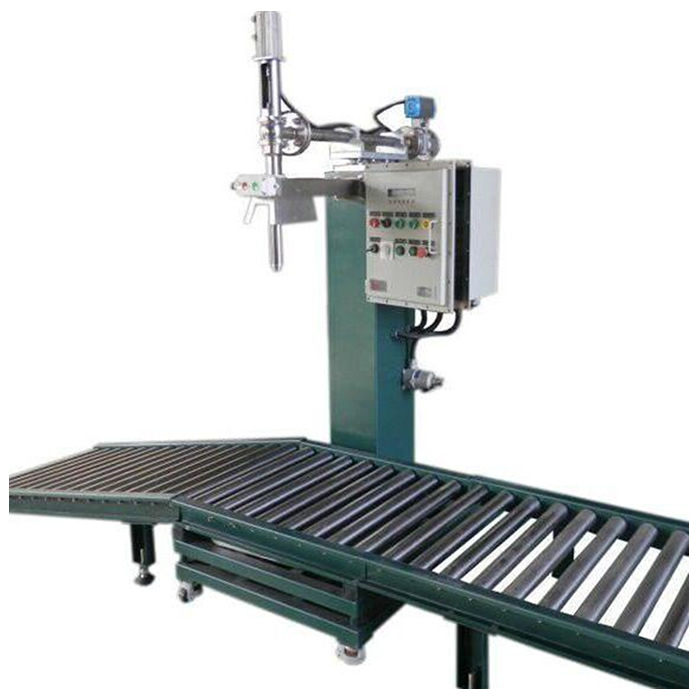

Automatic Oil Drum Filling Machine
Precision. Safety. Industrial Reliability.
Parameter | OD-3100 (Standard) | OD-3200X (ATEX) | OD-3300H (High-Visc) |
|---|---|---|---|
Capacity | 20-220L (±0.2%) | 金彩汇20-220L (±0.3%) | 20-220L (±0.25%) |
Throughput | 35 drums/hour | 金彩汇30 drums/hour | 金彩汇32 drums/hour |
Accuracy | 金彩汇±0.2% gravimetric | ±0.3% | ±0.25% |
Viscosity Range | 10-100,000 cP | 金彩汇50-80,000 cP | 500-500,000 cP |
Filling Technology | Coriolis Mass Flow | 金彩汇ATEX Gear Pump | Heated Screw Conveyor |
Material Contact | 316L SS + PTFE | Hastelloy C276 | 金彩汇Hardox 400 + PEEK Lining |
Explosion Protection | N/A | Zone 1 (IIB T4) | N/A |
Static Control | <10⁶ Ω (NFPA 77) | <10⁵ Ω | <10⁶ Ω |
Overfill Prevention | Radar + Weight Redundancy | Same + SIL-2 | Triple Sensor System |
Power | 金彩汇380V/50Hz, 7.5kW | 24VDC Ex ia | 380V/50Hz, 9.2kW |
N₂ Consumption | 40 L/min | 50 L/min | 45 L/min |
Cycle Time | 1.7 min/drum | 金彩汇2.0 min/drum | 金彩汇1.8 min/drum |
Footprint (L×W×H) | 3500×1800×2500mm | 3800×2000×2700mm | 金彩汇3600×1900×2600mm |
Certified Protection:
ATEX Zone 1 Compliance (IECEx IEC 60079)
Spill Containment: 304 SS drip tray (50L capacity)
Emergency Shutdown: <0.3s response (SIL-2)
Oil Type | Technology | Performance |
|---|---|---|
Light Hydraulic | 金彩汇High-Flow Mode (200 L/min) | ±0.15% accuracy |
Gear Oil ISO 680 | 金彩汇Heated Path (60°C±1°C) | 金彩汇Viscosity stability ±2% |
Grease NLGI 2 | 金彩汇Pulsed Piston Filling | Zero air inclusion |
Lubricant Manufacturing
Feature | Specification |
|---|---|
API Certification | Auto-viscosity compensation |
Additive Dosing | 金彩汇8-port system (±0.5%) |
MIL-PRF Compliance | 金彩汇Military spec filling protocols |
Fuel & Petrochemicals
金彩汇Flash point monitoring (>38°C)
Conductive filters (<10⁴ Ω)
Reid vapor pressure compensation
Transformer & Dielectric Oils
Parameter | Solution |
|---|---|
金彩汇Moisture Control | Dehumidified N₂ blanket |
Particulate | 金彩汇5μm final filtration |
Dielectric Loss | 金彩汇Filling under vacuum (-0.8 bar) |
10" HMI with PetroOS™
AI-Driven Safety:
Ignition Risk Prevention:
Risk Factor | Action |
|---|---|
VOC >20% LEL | 金彩汇Auto shutdown + N₂ flood |
Static >10 mJ | Ionized air injection |
Predictive Maintenance:
Component | Alert Threshold |
|---|---|
金彩汇Pump Vibration | 金彩汇>4.5 mm/s → Service required |
Seal Degradation | Leak >0.1 ml/min → Replace |
Metric | Manual Filling | OD-3100 | Improvement |
|---|---|---|---|
Output | 12 drums/hour | 35 drums/hour | ↑192% |
Oil Loss | 2.8% | <0.1% | ↓96% |
VOC Emission | 450 ppm | <5 ppm | ↓99% |
Labor Cost | 金彩汇3 operators | 0.5 FTE | ↓83% |
► ATEX 2014/34/EU (OD-3200X) ► API 682 Seal Standard ► ISO 80079-36 Explosive Atmospheres ► OSHA 1910.106 Compliance ► CE EN 60204-1
1. AGV Drum Loading → 2. Laser Bung Alignment → 3. N₂ Purging (O₂<0.5%) → 4. Mass Flow Filling (±0.2%) → 5. Auto Torque Sealing → 6. Vapor Recovery → 7. Palletizing
Cycle Time: 1.7 minutes/drum
Element | Content |
|---|---|
Title (60 chars) | Automatic Oil Drum Filler | 35 Drums/H | ±0.2% | ATEX | Shanghai Guangzhi |
Description (150 chars) | Industrial oil drum filling: 35 drums/hour, ±0.2% accuracy. ATEX Zone 1 certified. N₂ inerting & VOC capture. Free quote! |
Core Keywords | 1. |
Tags |
|
Service | Standard | Premium |
|---|---|---|
Installation | 5-day plant commissioning | Turnkey integration |
Remote Monitoring | 24/7 IIoT diagnostics | AR-guided troubleshooting |
Spare Parts | 金彩汇48h global delivery | On-site critical inventory |
Training | 金彩汇3-day operator certification | 金彩汇Custom ERP integration |
