Functional features:Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learnMulti stage filling - can be divided into two stages (fa

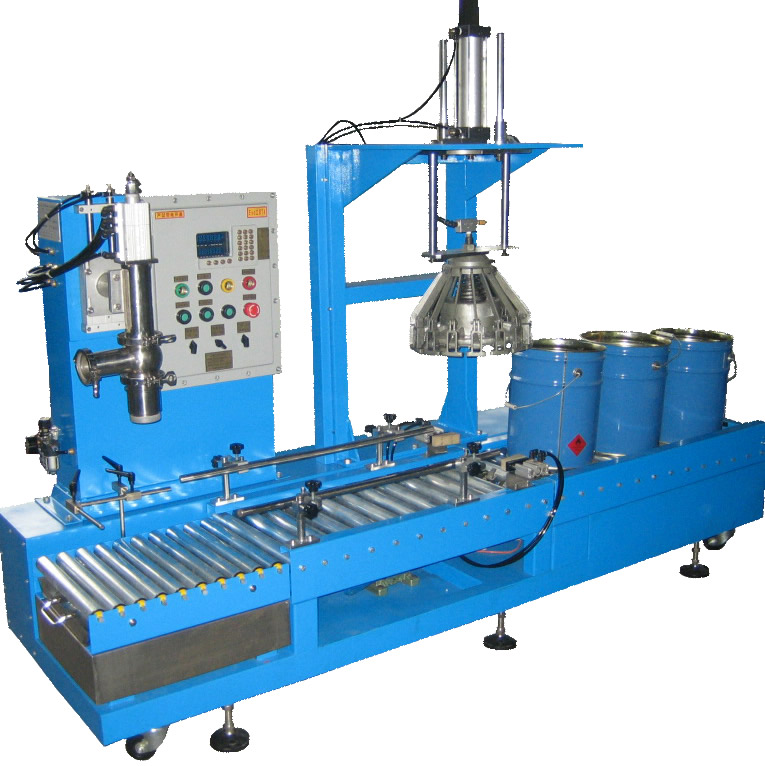

Model: GX-20Ex Series
Manufacturer: Shanghai Guangzhi Automation
Parameter | GX-20Ex Standard | GX-20Ex Pro |
|---|---|---|
Filling Capacity | 5-20L (±0.3%) | 5-20L (±0.15%) |
Throughput | 45 drums/hour | 50 drums/hour |
Viscosity Range | 100-500,000 cP | 50-600,000 cP |
Gland Type | Single/Double Seal | 金彩汇Triple Seal |
Pressure Rating | 0-6 bar | 0-10 bar |
Explosion Proof | 金彩汇ATEX Zone 1 | 金彩汇IECEx Zone 0/1 |
Material Contact | Hastelloy C276 | 316L SS + Kalrez® |
Power | 24VDC Ex ia | 金彩汇24VDC Ex ia |
N₂ Inerting | 金彩汇30 L/min @ 4bar | 40 L/min @ 4bar |
Leakage Rate | <0.001 ml/min | <0.0005 ml/min |
Footprint (L×W×H) | 2800×1600×2200mm | 金彩汇3000×1700×2400mm |
Component | Technology | Certification |
|---|---|---|
Pressurized Cabinets | Ex pxb Purge (ISO 60079-2) | 金彩汇ATEX II 2G Ex db IIC T4 |
Intrinsic Safety | 金彩汇Ex ia IIC T4 (<20μJ energy) | 金彩汇IECEx IEC 60079-11 |
Static Dissipation | 金彩汇Conductive Path (<10⁵ Ω) | NFPA 77 Compliant |
Flame Arrestors | 金彩汇Metal Mesh + Ceramic Filters | 金彩汇EN ISO 16852 Certified |
图片代码graph TBA[Gland Pre-Tensioning] --> B{Pressure Test}
B -->|Pass| C[Sealant Injection]B -->|Fail| D[Auto-Rejection]C --> E[Real-Time Leak Monitoring]PassFailGland Pre-TensioningPressure TestSealant InjectionAuto-RejectionReal-Time Leak MonitoringPerformance Metrics:
Sealant Injection Accuracy: ±0.1ml
Pressure Test Sensitivity金彩汇: 0.01 bar deviation detection
Sector | Solution | Compliance |
|---|---|---|
Chemical Solvents | 金彩汇Fluoropolymer seals + Vapor recovery | 金彩汇IEC 60079-15 |
LNG/LPG | 金彩汇Cryogenic sealing (-196°C) | EN 1473 |
Pharma API | 金彩汇USP Class VI seals | 金彩汇ISO 14644 Class 5 |
Paints/Resins | 金彩汇Anti-adhesion coating | ATEX Directive 2014/34/EU |
Metric | Conventional Gland Filler | GX-20Ex Pro | Improvement |
|---|---|---|---|
Seal Failure Rate | 3-5% | <0.01% | ↓99.7% |
VOC Emission | 200-500 ppm | <5 ppm | ↓98% |
Maintenance Interval | 500 cycles | 5,000 cycles | ↑900% |
Energy Consumption | 0.35 kWh/drum | 0.18 kWh/drum | ↓49% |
10" Ex-Proof HMI with AI Diagnostics
Key Features:
Leakage Prediction:
Parameter | Action |
|---|---|
Seal friction >8N | Alert + torque adjustment |
Pressure drop >0.1bar | Auto shutdown |
Remote Compliance:
金彩汇ATEX audit logs
金彩汇SIL 3 safety interlocks
► ATEX 2014/34/EU (Category 1G) ► IECEx IEC 60079-0/1/7/11 ► API 682 (Seal Standard) ► ISO 15848-1 (Valve Sealing) ► PED 2014/68/EU (Pressure Equipment)
