Drum on pallet filling line

Drum on pallet filling line

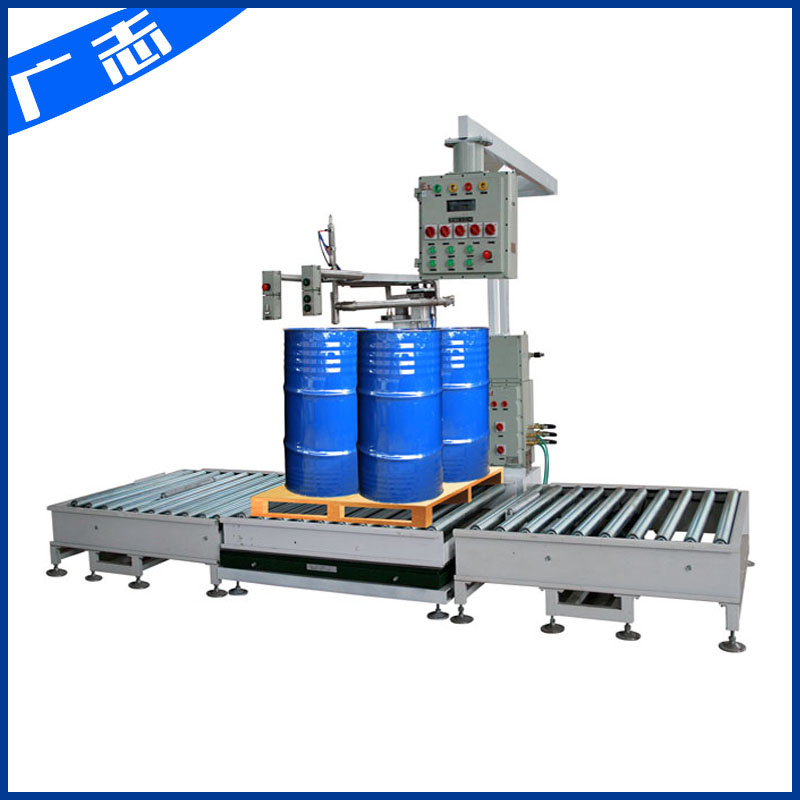

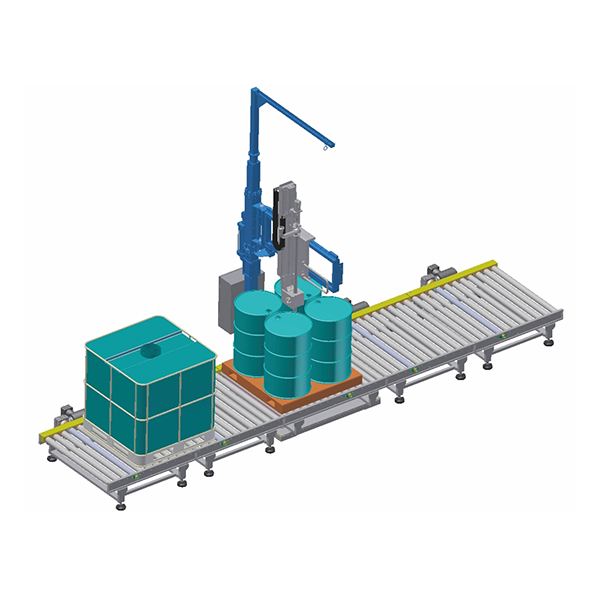

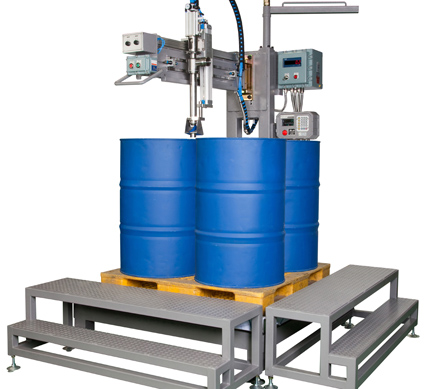

4*Drums on pallet, filling one by one, after filling, moved by truck lift or use a conveyor to remove it.

• Model	GFM-OS
  Suitable material	Liquid like coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc
  Weighing form	Filling above level (liquid without foam) Filling under level (liquid with foam)
  Filling capacity	200kg*4 (pallet)
  Accuracy	≤ 0.1%
  Filling speed	10-12 pallet/hour
  Barrel form	Four Drums(one pallet)
  Gas power	0.5MPa
  Work environment	Temperature ：-20℃～45℃relative humidity：95%（none dew）
  voltage	AC 110V/220V, 50/60Hz, 10A
  Max power	1KW
  Filling mouth material	SUS304/SUS316
  Platform size(mm)	1300*1300
  Option	Stainless steel 304 conveyor roller

• This system optimizes industrial drum filling and material handling by sequentially filling 4 drums securely mounted on a pallet. After filling, the entire pallet is efficiently transported via forklift/truck lift or conveyor systems, minimizing manual handling and maximizing workflow speed. Ideal for chemicals, food, pharmaceuticals, and bulk liquids.

• Product Overview

• Process Flow:

• Pallet Setup: 4 empty drums secured on a reinforced pallet.

• Sequential Filling: Automated/semi-automated nozzles fill drums one-by-one to ensure precision.

• Post-Filling Handling: Pallet moved via forklift (for short-distance) or conveyor (automated long-distance).

• Key Advantages:

• ⚡ Efficiency金彩汇: 30–50% faster than individual drum handling.
