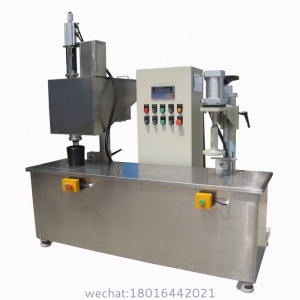

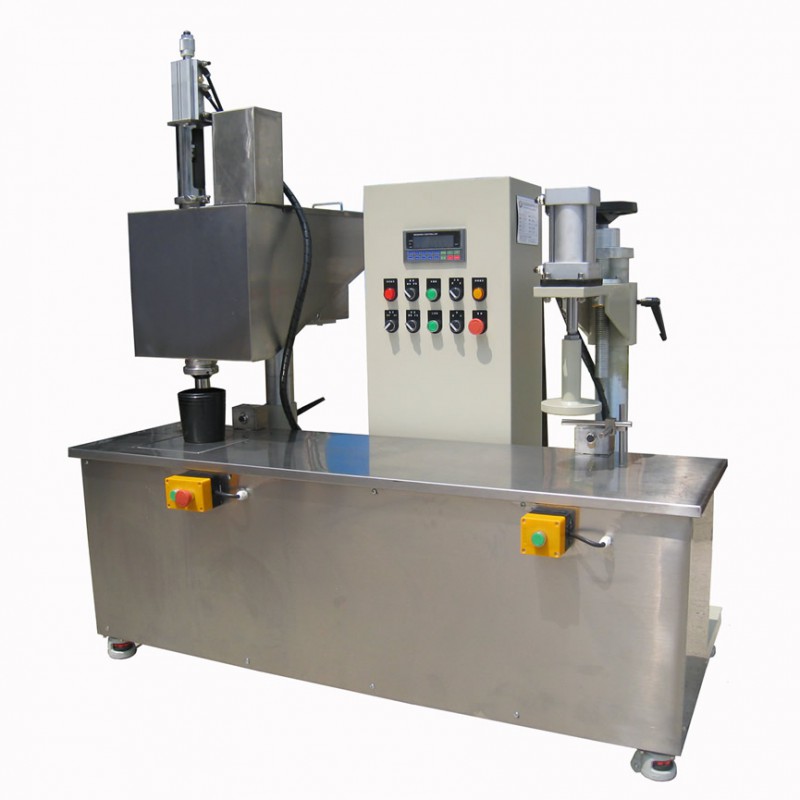

5L capping and filling machine
Integrated solution: Fills & caps 5L containers at 50 units/hour. ±0.2% filling accuracy, torque control & CIP system. FDA/CE compliant for chemicals/foods/pharma.
- Brand： glzon
- Model： GZM_10L
Product Essence: Two Processes. One Precision Engine.
Shanghai Guangzhi Automation’s 5L Capping & Filling System unifies ±0.2% volumetric filling and ±2% torque accuracy in a single footprint. Engineered for jerrycans, pails, and bottles, it achieves 50 containers/hour with zero transfer contamination, reducing labor costs by 60% while serving chemical, food, and pharmaceutical industries.
Core Technology Integration
1. Synchronized Precision
| Module | Technology | Performance |
|---|---|---|
| Filling | Servo-piston + Coriolis feedback | ±0.2% accuracy (1-5,000 cP) |
| Capping | 6-station servo turret | Torque: 5-50 N·m (±2%) |
| Anti-Drip System | Needle valve + air knife | Residual ≤0.1ml |
| Container Handling | Starwheel indexing | Positional error <0.5mm |
2. Hygienic Closed Design
Material Flow Path:
316L stainless steel (Ra≤0.8μm)
金彩汇Self-draining slope (3°)
CIP/SIP Ready:
Cleaning Type Time Compliance Acid/Alkali CIP <8 min FDA 21 CFR 177.2600 Steam SIP <15 min ASME BPE-2019
3. Rapid Changeover
Tool-Free Adjustments:
Parameter Adjustment Range Time Container height 300-600mm <30s Cap diameter Ø50-120mm <45s Fill volume 1-5L <20s
Technical Specifications
| Parameter | Chemical Model | Food-Grade Model | Pharma Model |
|---|---|---|---|
| Throughput | 50 units/hour | 45 units/hour | 40 units/hour |
| Filling Accuracy | ±0.2% | ±0.15% | ±0.1% |
| Torque Accuracy | ±2% | ±1.5% | ±1% |
| Cap Types | Screw/Lug/Press-on | Tamper-evident | Child-resistant |
| Material Contact | PTFE/316L | 316L + USDA seals | 316L EP + USP VI |
| Power | 380V/50Hz, 4.5kW | 380V/50Hz, 4.2kW | 380V/50Hz, 5kW |
| Air Consumption | 120 L/min @ 0.6MPa | 100 L/min @ 0.6MPa | 150 L/min @ 0.6MPa |
| CIP/SIP | Solvent CIP | Caustic CIP | Pure steam SIP |
| Footprint (L×W×H) | 2500×1600×2200mm | 2500×1600×2200mm | 2600×1600×2300mm |
Industry-Specific Solutions
Chemicals & Solvents
金彩汇ATEX Zone 2 option
Vapor recovery hood (≥95% capture)
Static-dissipative belts (<10⁶ Ω)
Food & Edible Oils
IP69K washdown rating
Allergen purge mode
USDA-compliant materials
Pharmaceuticals
金彩汇ISO Class 7 cleanroom kit
金彩汇21 CFR Part 11 data logging
金彩汇Nitrogen blanketing (O₂<0.1%)
Smart Control Ecosystem
10" HMI with Unified Dashboard
Key Features:
Auto Recipe Recall: 50+ preset formulas
Predictive Maintenance:
金彩汇Piston seal wear alerts
Servo torque drift detection
Defect Traceability:
金彩汇Correlates fill/cap defects
Operational Impact
European Chemical Packer Case:
Challenge金彩汇: Separate filling/capping caused 5% spillage & 8% torque failures
Solution金彩汇: Integrated Guangzhi system with closed-path transfer
Results:
▶ Zero spills
▶ Cap defect rate <0.05%
▶ ROI in 9 months
Certifications & Upgrades
Base Compliance:
金彩汇CE EN 60204-1
金彩汇FDA 21 CFR 177.2600
金彩汇ISO 9001:2015
Advanced Options:
| Module | Function |
|---|---|
| Inline Leak Tester | Vacuum decay test (≤0.01 mL/min) |
| Robotic Loader | Auto container feeding (60/h) |
| AR Maintenance Guide | HoloLens-assisted calibration |
| VOC Abatement | Carbon adsorber for solvents |
Support & Service
24/7 Global Response:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
金彩汇Filling pistons
金彩汇Torque sensors
Conveyor belts
Performance Validation:
Fill accuracy certification (OIML R60)
金彩汇Torque calibration traceability
APPLICABLE BARREL TYPE
