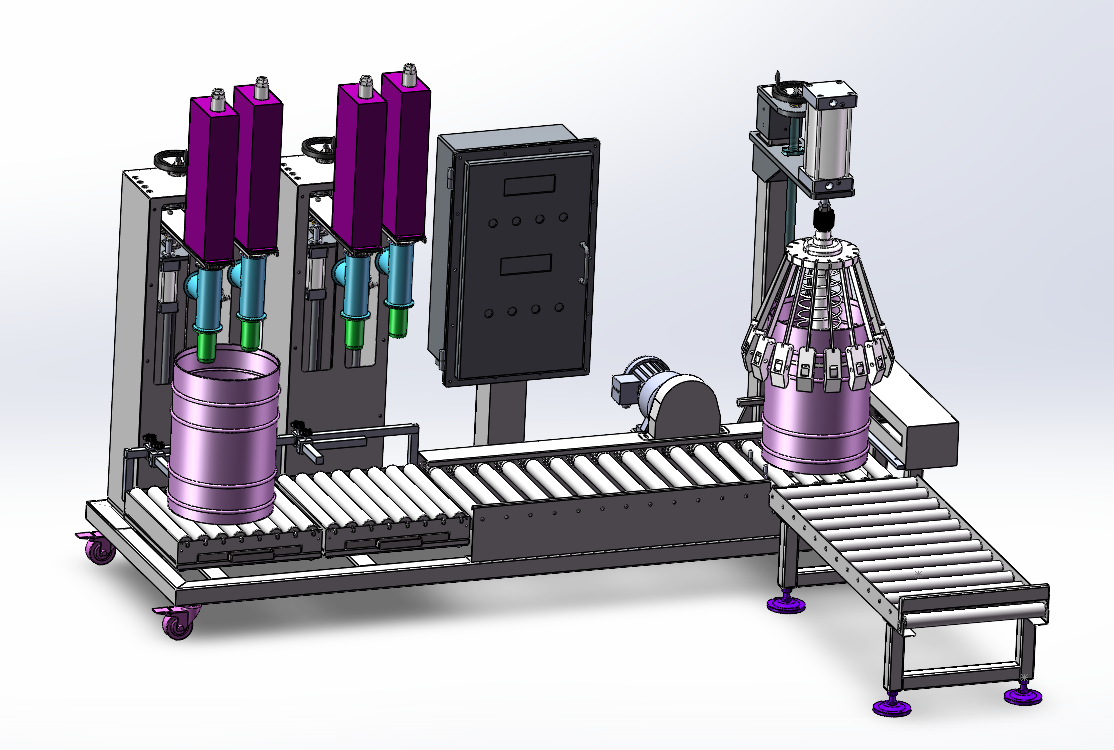

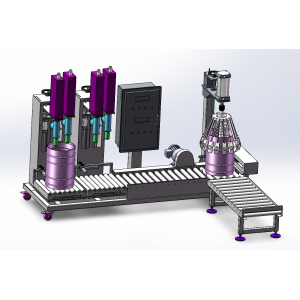

Coating Filling machine
金彩汇Coating Filling machineBasic parametersMaximum weighing capacity: 40kg;Display division value: 10g;Filling error: ± 10g;Filling speed: approximately 300-350 barrels per hour/(25 liters depending on fe
- Brand：
- Model：
Product Introduction
The GF-CFM Series Coating Filling Machine is engineered for high-accuracy, high-speed filling of viscous coatings, paints, adhesives, and chemical products. Designed to meet stringent industrial standards, it integrates advanced servo technology, customizable filling heads, and intelligent control systems to ensure consistency, minimize waste, and maximize production efficiency. Ideal for manufacturers in the paint, chemical, and construction industries, this machine supports containers ranging from 100ml cans to 20L pails with exceptional precision (±0.5%). Its robust stainless-steel construction and user-friendly interface make it a reliable solution for both batch and continuous production lines.
Product Overview
Key Features:
High Precision & Speed:
Servo-driven piston filling with repeat accuracy of ±0.5%.
Filling capacity: 100ml – 20L (adjustable in 1ml increments).
Speed: Up to 45 containers/minute (dependent on viscosity and volume).
Versatile Material Handling:
Compatible with coatings, sealants, epoxy resins, solvent-based paints, and water-based emulsions.
Viscosity range: 5,000 – 50,000 cP (higher with optional heating).
Durable Construction:
Contact parts: 316L stainless steel (standard) or PTFE-coated金彩汇 for corrosive chemicals.
Frame: Powder-coated carbon steel or stainless steel (optional).
Smart Control & Customization:
10-inch HMI Touchscreen with recipe storage, production tracking, and fault diagnostics.
Modular design supports 1–16 filling heads金彩汇, rotary or inline configurations.
Optional add-ons: Nitrogen blanketing, drying tunnels, capping stations, and conveyor integration.
Compliance & Safety:
CE, ISO 9001 certified.
金彩汇Explosion-proof version (ATEX) available for solvent-based coatings.
金彩汇Emergency stop, splash guards, and ventilation interfaces.
Technical Specifications Table
| Parameter | Specification | Options |
|---|---|---|
| Filling Range | 100ml – 20L | Customizable |
| Accuracy | ±0.5% of set volume | ±0.3% (high-precision upgrade) |
| Speed | 15–45 containers/min | Speed varies with viscosity/volume |
| Viscosity Range | 5,000 – 50,000 cP | Heating jacket (up to 100,000 cP) |
| Power Supply | 220V/380V AC, 50/60Hz, 3-phase | 110V/480V upon request |
| Air Pressure | 0.6–0.8 MPa | Built-in regulator |
| Material Contact | 316L SS, PTFE, or Hastelloy® | Customized upon request |
| Control System | PLC + 10" HMI (multi-language) | IoT connectivity (Industry 4.0) |
| Filling Heads | 1–16 | Rotary or linear layout |
| Machine Dimensions | 1500×1000×1800mm (base model) | Scalable for production lines |
Applications Table
| Industry | Typical Products Filled | Special Requirements Supported |
|---|---|---|
| Paints & Coatings | Water-based paints, solvent coatings, primers, varnishes, wood stains | Solvent recovery, explosion-proof design |
| Chemicals | Adhesives, sealants, epoxy resins, polyurethanes, lubricants, industrial coatings | Corrosion-resistant materials, nitrogen purge |
| Construction | Caulks, putties, grouts, joint compounds, tile adhesives | High-viscosity pumping, anti-clogging |
| Automotive | Anti-rust coatings, underbody sealants, OEM finishes | Precision filling (≤±0.5%), cleanroom-ready |
| Marine & Protective | Anti-fouling paints, marine coatings, corrosion inhibitors | Salt-spray-resistant components |
Why Choose GF-CFM Series?
✅ Reduced Waste: Precise volume control cuts product loss by up to 8%.
✅ Flexible Production: Quick-changeover design for batches of 50–10,000+ units.
✅ Low Maintenance: Self-lubricating seals, accessible components, and modular parts.
✅ Global Support: 24/7 technical assistance, spare parts logistics, and on-site training.
Let me know if you need a PDF version, brochures, or specific configurations (e.g., for explosive atmospheres, sterile filling)!
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
金彩汇We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
金彩汇Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
金彩汇We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
金彩汇Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
金彩汇Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
金彩汇We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
金彩汇Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
FAQs
金彩汇Our in-house designers and engineers have produced countless great designs for customers from different industries
1
Can we get your free samples?
Samples can be offered for free. But courier cost for the samples should be at buyer's account.
2
Can you print our LOGO in flatware set?
Yes.we can print the logo on the flatware set as your requirements.Embossed, laser,stamped and engraved are available.
3
How long is the delivery time of sample?
Samples from stock can be sent within 1-3 days. New produced samples will be sent within 5-15 days.
4
Is there any MOQ for what I purchase?
Yes, we have MOQ for mass production. Different item with different package has different MOQ. Please contact us for more details.
5
Do you accept OEM or ODM services?
OEM and ODM are accepted!
6
What is 18-10 Stainless Steel Flatware?
18-10 refers to the composition of stainless steel. It contains 18% chromium and 10% nickel for excellent strength and corrosion resistance.
