OilAddFill OA-208 Series
Automatic Explosion-Proof Filling System for 208L Oil Additive Steel Drums
ATEX Zone 1 Certified • 45 Drums/Hr • ±0.05% Accuracy • Triple VOC Containment • Precision Gravimetric Filling
Core Technical Specifications
| Parameter | OA-210 (Standard) | OA-220X (ATEX Zone 1) | OA-230P (High-Purity) |
|---|
| Capacity | 208L (±0.05%) | 208L (±0.08%) | 208L (±0.03%) |
| Throughput | 45 Drums/Hr | 40 Drums/Hr | 38 Drums/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 10-1,000,000 cP |
| Additive Compatibility | Detergents • Anti-Wear Agents • Viscosity Modifiers • Friction Modifiers • Corrosion Inhibitors | EP Additives | Synthetic Esters |
| Filling Technology | Coriolis Mass Flow + Gear Pump<br>Flow Rate: 250L/min<br>Density Accuracy: ±0.01% | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Material Contact | Hastelloy C276 | Zirconium R60702 | 316L EP (Ra<0.2μm) |
| Explosion Protection | ATEX Zone 1/21 | IECEx Zone 0 | ATEX + cGMP |
| VOC Containment | TripleLock™:<br>1. N₂ Inerting (O₂<0.3%)<br>2. -0.8bar Vacuum Hood<br>3. Activated Carbon Adsorption (99.97%) | + Catalytic Oxidizer | Closed-Loop System |
| Drum Handling | Robotic Clamping System<br>• Force Control: 500-2,000N<br>• LiDAR Positioning ±0.5mm<br>• UN-Certified Compatibility | ATEX Grippers | Cleanroom Grippers |
| Static Control | Ionized Air Curtain<br>• 10⁶ ions/cm³ Output<br>• <0.1kV Surface Charge<br>• SIL-3 Spark Detection | NFPA 77 Compliance | ESD Grounding System |
| Changeover Time | <120s (Tool-Free) | <150s | <90s |
| Power | 480V/60Hz, 18kW | 24VDC Ex ia | 480V/60Hz, 16kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | API 682 |
Engineering Innovations
1. GravMaster™ Precision Weighing**
Performance Validation:
| Additive Type | Viscosity | Accuracy | Residual |
|---|
| ZDDP Anti-Wear | 120 cP | ±0.03% | <0.05L |
| PIBA Detergent | 80 cP | ±0.04% | <0.04L |
| MoS₂ Friction Modifier | 45,000 cP | ±0.07% | <0.08L |
2. ExoShield™ Safety Architecture**
| Layer | Technology | Certification |
|---|
| Primary Barrier | Nitrogen Inerting (O₂<0.3%) | EN 60079-2 |
| Secondary Defense | Rupture Discs (8m² Vent Area) | NFPA 68 |
| Tertiary Monitor | SIL-3 Spark Detection | IEC 61508 |
Operational Workflow
1. AGV Drum Infeed → 2. Helium Leak Test (<10⁻⁹ mbar·L/s) →
3. N₂ Purging (O₂<0.3%) → 4. Submerged Filling (±0.05%) →
5. Vacuum Hood Retract → 6. Torque-Sealing (100-300 N·m) →
7. Weight Verification → 8. Laser Coding →
9. Automated Palletizing
Cycle Time: 80 seconds/drum
Technical Advantages
Precision & Safety Excellence
► Gravimetric Perfection:
| **Component** | **Performance**|
|----------------------|------------------------|
| Coriolis Meter| ±0.01% Density Accuracy |
| Load Cells| Temperature-Compensated ±0.02% |
| PID Control | ±0.05% Fill Consistency |
► Zero-Emission Operation:
1. 99.97% VOC Carbon Adsorption
2. Double Mechanical Seals (API 682)
3. Helium-Verified Integrity
► Industrial 4.0 Integration:
- OPC UA/PROFINET Connectivity
- Predictive Maintenance AI
- Blockchain Batch Tracking
Certifications
► ATEX 2014/34/EU Zone 0
► IECEx IEC 60079-0/1/7/31
► API 682 Plan 53B
► ISO 80079-36/37
Case Study
LubriChem Additives Facility:
"After implementing OA-220X:

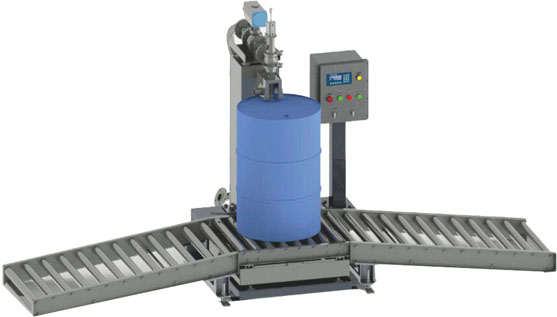

Pictures of steel drum filling machine

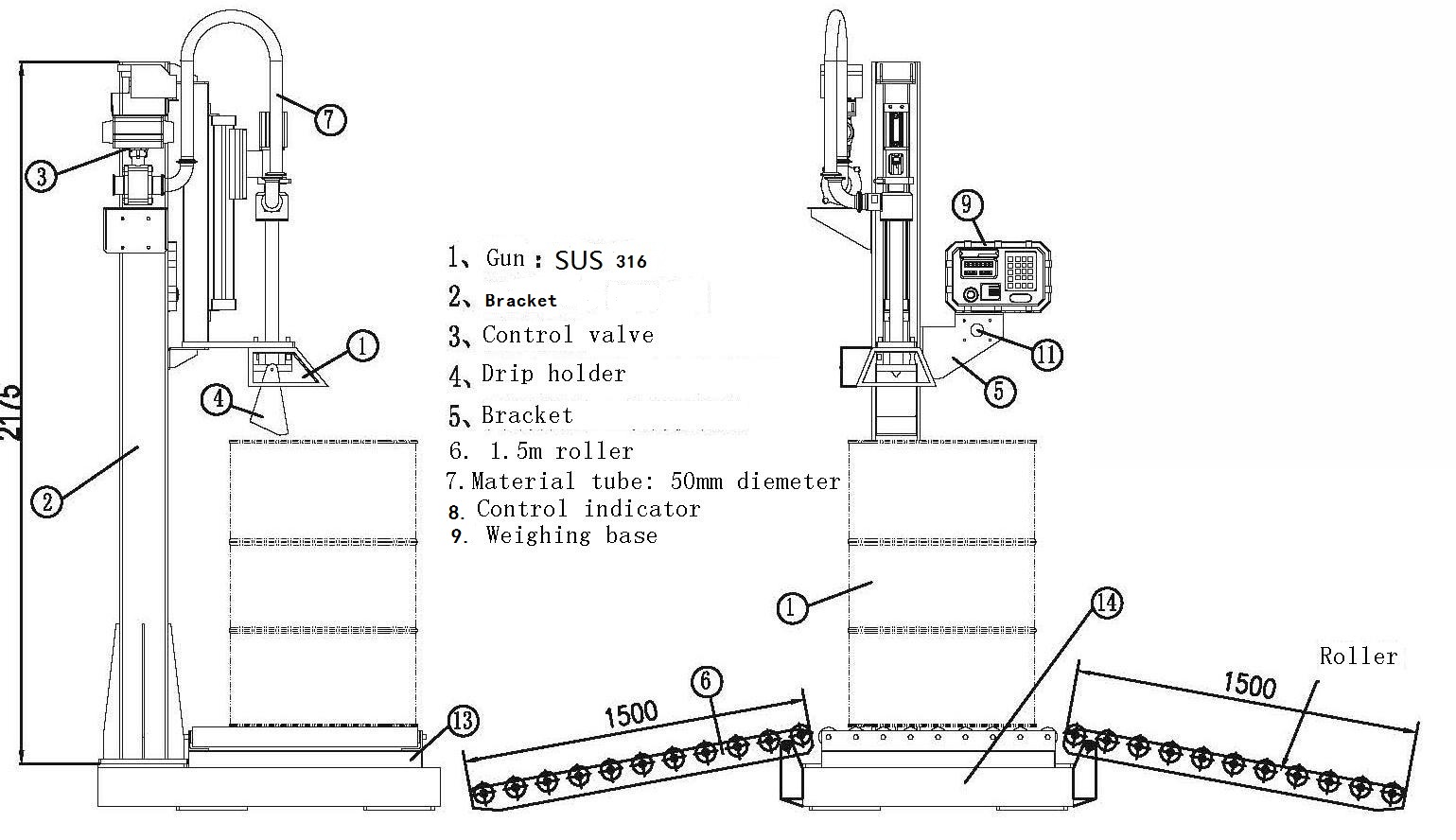

Free design filling line drawings
Roller Track: 1500X1300mm
APPLICABLE BARREL TYPE
