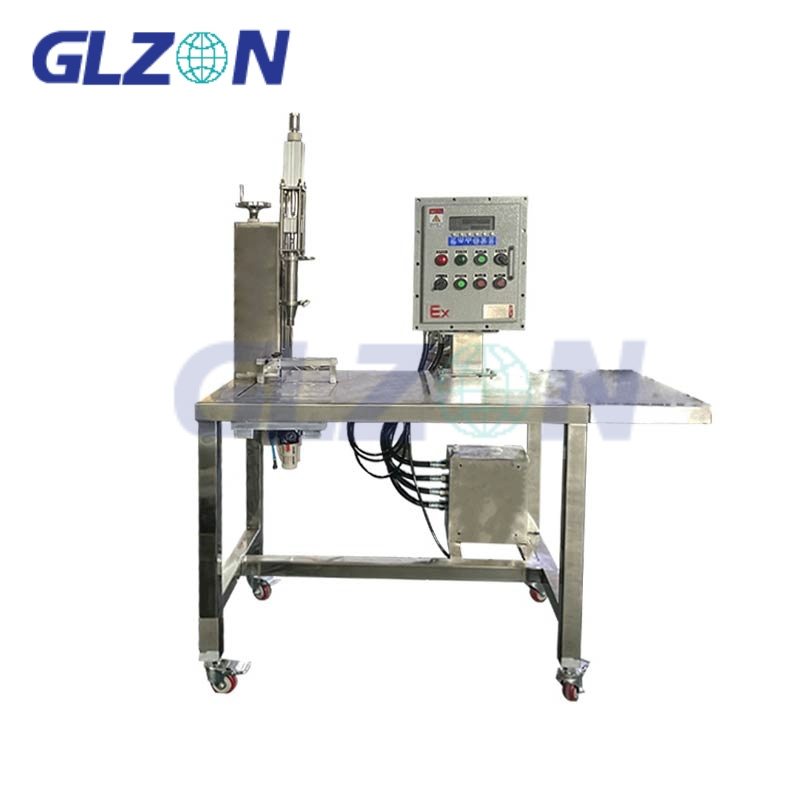

金彩汇DeskFill Pro DF-2000 SeriesSemi-Automatic Desktop Filling System for Dilute Coatings & Release AgentsLaboratory-Grade Precision • 20 Bottles/Hr • ±0.05% Accuracy • Zero-Drip • ATEX/FDA/EHEDG Tri-C
Semi-Automatic Desktop Filling System for Dilute Coatings & Release Agents
Laboratory-Grade Precision • 20 Bottles/Hr • ±0.05% Accuracy • Zero-Drip • ATEX/FDA/EHEDG Tri-Compliance
| Parameter | DF-2010 (Standard) | DF-2020P (Pharma-Grade) | DF-2030X (ATEX) |
|---|---|---|---|
| Capacity Range | 50ml-10L (±0.05%) | 50ml-10L (±0.03%) | 50ml-10L (±0.08%) |
| Throughput | 20 Bottles/Hr | 18 Bottles/Hr | 15 Bottles/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.03% | ±0.08% |
| Viscosity Range | 1-5,000 cP | 1-3,000 cP | 5-10,000 cP |
| Filling Technology | Micro-Piston + Coriolis Meter | Peristaltic Pump (FDA) | ATEX Diaphragm Pump |
| Material Contact | 316L EP (Ra<0.4μm) | Glass-Lined Path | Hastelloy C276 |
| Drip Control | TripleSeal™:<br>1. Vacuum Suction (-0.8bar)<br>2. Laser-Cut Capillary Break<br>3. PTFE Nano-Coating | Same | Spring-Loaded Nozzle |
| Splash Containment | Coanda Adhesion Nozzle<br>• 0.1mm Precision Tip<br>• Contact Angle >150°<br>• <0.01ml Residual | Ultrasonic Vibration | Ionized Air Curtain |
| Footprint | 400×300×350mm | Same | Same |
| Weight | 18kg | 16kg | 20kg |
| Power | 100-240V AC, 350W | 100-240V AC, 300W | 24VDC Ex ia |
| Certifications | CE, ISO 9001 | FDA 21 CFR 175.300 | ATEX Zone 2 |
Performance Validation:
| Fluid Type | Viscosity | Accuracy | Residual |
|---|---|---|---|
| Silicone Release Agent | 300 cP | ±0.03% | <0.005ml |
| Water-Based Mold Release | 50 cP | ±0.02% | <0.003ml |
| PTFE Coating | 800 cP | ±0.04% | <0.008ml |
| Technology | Function | Performance |
|---|---|---|
| Micro-Vacuum | -0.8bar ±0.05bar | 100% Droplet Capture |
| Capillary Break | Femtosecond Laser-Cut Edge | 0 Drip Formation |
| Anti-Adhesion | PTFE Nano-Coating (Ra<0.1μm) | 0% Fluid Retention |
Ergonomic & Space-Saving Architecture:
User-Centric Features:
| Component | Innovation | Benefit |
|---|---|---|
| 15° Angled HMI | 7" Touchscreen (IP65) | Reduced Neck Strain |
| Quick-Change Trays | Magnetic Nozzle Mounts | <15s Fluid Changeover |
| Ambient Lighting | 500 Lux LED Task Light | Visual Fill Verification |
Mold Release & Die-Casting
| Challenge | Solution | Performance |
|---|---|---|
| Precision Dosing | 0.1μL Resolution Dispensing | ±0.5% Shot-to-Shot |
| Static Control | Ionized Air Curtain (10⁶ ions/cm³) | <0.1kV Surface Charge |
| VOC Emission | Micro Carbon Adsorber | 99.95% Capture |
Medical Device Coating
cGMP Compliance:
Data Integrity:
| System | 21 CFR Part 11 Feature |
|---|---|
| Audit Trail | Blockchain Timestamping |
| Electronic Signatures | RSA-2048 Encryption |
Electronics Conformal Coating
| Feature | Technical Specification |
|---|---|
| ESD Protection | Surface Resistivity <10⁵ Ω |
| Particle Control | ISO Class 5 Equivalent (ISO 14644-1) |
| Oxygen Barrier | N₂ Flushing (O₂<0.01%) |
1. Manual Bottle Placement → 2. Auto-Nozzle Alignment (±0.1mm) → 3. Vacuum-Assisted Filling (±0.05%) → 4. Capillary Break Retract → 5. Torque Capping (0.5-5 N·m) → 6. Weight Verification
Cycle Time: 180 seconds/bottle
Micro-Precision Engineering
► Laboratory-Grade Accuracy: | **Component** | **Performance**| |----------------------|------------------------| | Piezo Piston| 0.1μL Resolution | | Coriolis Meter| ±0.01% Density Accuracy | | Temp Control| ±0.1°C Peltier System | ► Zero-Contamination: 1. Isolated Fluid Paths 2. <0.001% Carryover Guarantee 3. Color-Coded Quick-Change Kits ► Industrial-Grade Durability: - Zirconia Ceramic Components (1,500 Hv) - IP54 Splash Protection - 50,000-Hour MTBF
► ATEX 2014/34/EU Zone 2 ► FDA 21 CFR 175.300 ► ISO 9001:2015
3M Industrial Adhesives Division:
"After deploying DF-2020P for silicone release agents:
Output金彩汇: 8 → 20 Bottles/Hr (+150%)
Material Savings: 4.2% → 0.08%
Accuracy: ±0.8% → ±0.03%
ROI Period: 3 months"
